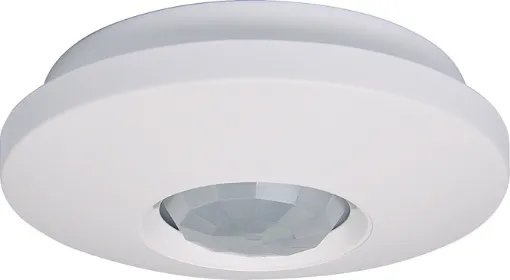

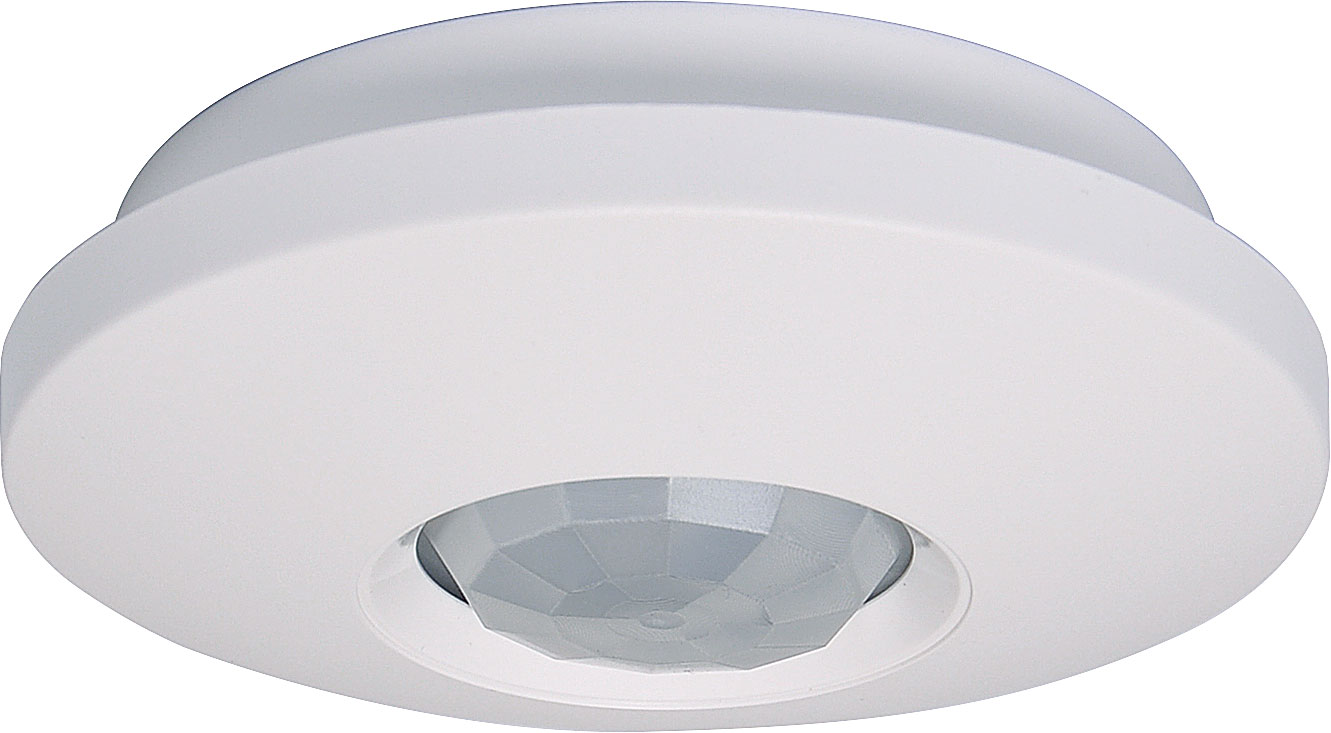

PIR 360&deg Quantum Detector

Manufacturer: NESS
Be the first to review this product
The PIR 360° Quantum Detector is a unique motion detector for complete and reliable 360° coverage designed for the latest generation of Ness control panels. Installed in rooms or in hallways, it provides 12 metre diameter coverage at floor level when installed on a standard 2.4 metre ceiling.
SKU: S5310
$62.73
Per ea
QuantityPrice
ea$62.73
4+$59.09

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The PIR 360° Quantum Detector is a unique motion detector for complete and reliable 360° coverage designed for the latest generation of Ness control panels. Installed in rooms or in hallways, it provides 12 metre diameter coverage at floor level when installed on a standard 2.4 metre ceiling. It protects you by detecting intruders body temperature using infra-red technology. Its discrete in size and has been designed for a range of interiors. Has a detection range of 12m.

Features

  • Detects motion
  • 360° coverage
  • Tamper Protection
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • Easy to install
  • 12m Detection Range

Specifications

Mounting Height: 2.4 m for best coverage

  • Coverage: 12m x 12m pattern at floor level
  • PIR Sensor: Dual element pyroelectric
  • Range Select: Selectable High/Low
  • Pulse Count: Selectable 1–2 or 3–4.
  • Visual Display: Red Alarm LED
  • Operating Voltage: 9 - 15 VDC
  • Dimensions: 102D x 30H mm
  • Alarm Period: 5 seconds
  • Warm up period: 30 seconds
  • Current Draw: 15mA
  • Alarm Output: Normally closed relay, dry contacts. Max. 0.5A@24V
  • R.F.I. Immunity: > 15V/m @ 10-1000MHz
  • Tamper Output: Normally closed dry contacts

12 Months

We Offer 12 Months for this product
