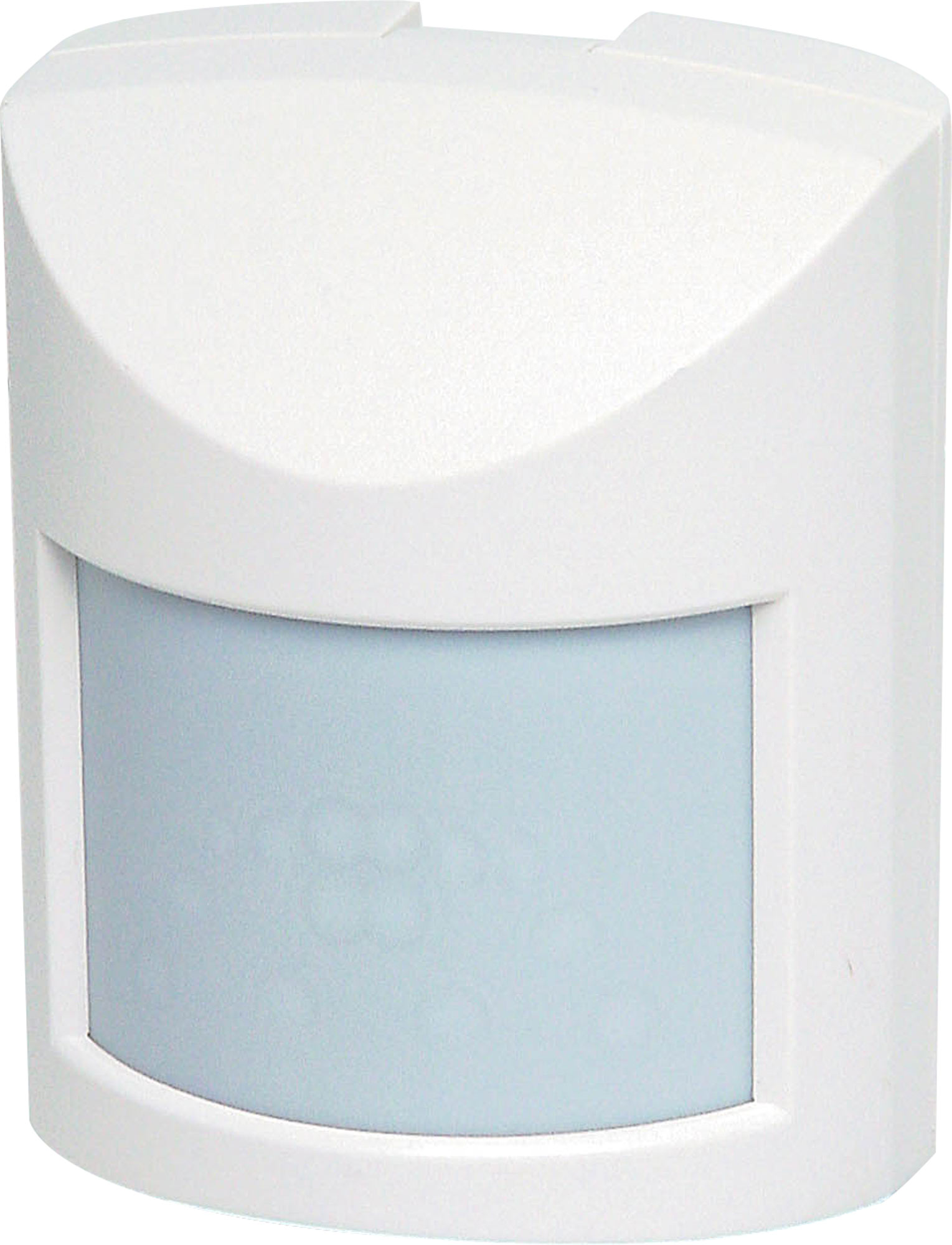

Quantum Quad Element Passive Infra Red (PIR) Detector

Manufacturer: NESS
Be the first to review this product
Incorporates Pulse Count Triggering
SKU: S5305A
$45.00
Per ea
QuantityPrice
ea$45.00
4+$43.18
10+$40.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Quantum-Q is Australian designed and made using precision S.M.D. technology. With enhanced 15 metre wide angle coverage, selectable Pulse Count and Sensitivity adjustments providing the flexibility to use the Quantum-Q in most environments.
Perfect for most domestic and commercial installations, Quantum-Q detector offers quality, performance and reliability at the right price.

Features:

  • Quad element pyro sensor
  • 15m x 15m wide angle coverage
  • Adjustable Pulse Count
  • Adjustable Range
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • High quality patented Fresnel lens
  • Front cover tamper protection
  • Totally silent solid state relay with high immunity to magnetic fields
  • Optional mounting bracket available
  • 9~15VDC Operation

Specifications

Mounting Height: 1.1m min, 3.1m max, 2.1m~2.3m optimal

  • Coverage: Up to 15m x 15m @ 90°
  • Detection Zones: 20 quad element zones
  • Pulse Count: Selectable 1–2 or 3–4
  • Range: Selectable High/Low. 15m max./12m max
  • Sensor: Quad element pyroelectric
  • Alarm Indication: Red LED
  • Relay Output: Solid state relay, normally closed contacts, 100mA max.
  • Tamper Output: Normally closed switch
  • Warm Up Time/Alarm Time: 30 seconds / 5 seconds
  • Operating Voltage/Current: 9 ~ 15V DC / 7mA
  • Operating Temperature: 0º-50ºC
  • Dimensions: 85H x 66W x 45D mm

3 Years

We Offer 3 Years for this product
