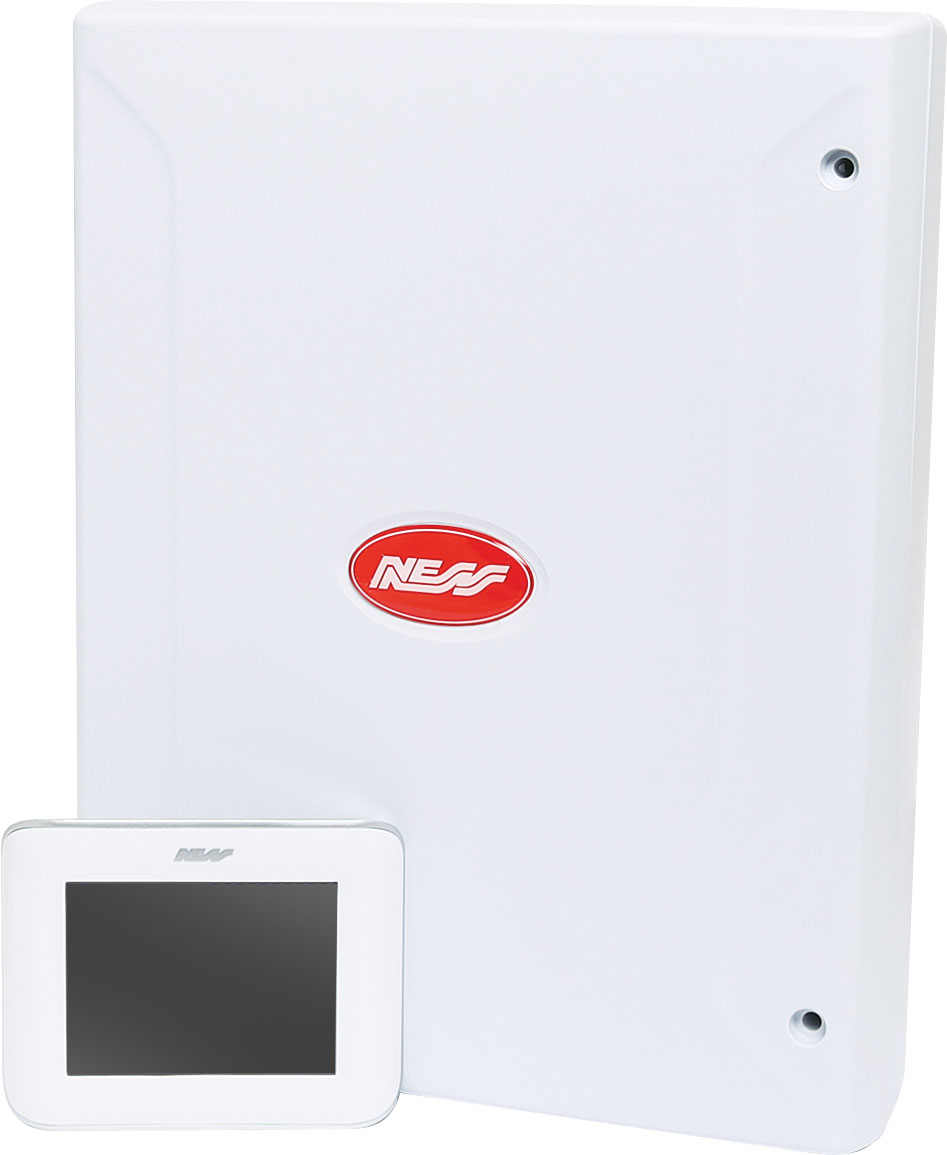

D8XCel 4G Navigator 8 Zone Alarm Panel

Manufacturer: NESS
Be the first to review this product
This 8 Zone Alarm Panel features flexible 8 Zone control panel & 4G Cellular communicator. Supplied with 4G Communicator onboard, Powerful NAVIGATOR Touchscreen keypad, plug pack, battery, housing and manuals.
SKU: S5276A
$650.00 $490.00
Per ea
Save $160.00
QuantityPrice
ea $650.00 $490.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 8 Zone Alarm Panel features flexible 8 Zone control panel & 4G Cellular communicator. Supplied with 4G Communicator onboard, Powerful NAVIGATOR Touchscreen keypad, plug pack, battery, housing and manuals.

The Panel can use SMS to receive commands from a Smartphone. Supports control via internet using Ness iComms/aComms iPhone/iPad and Android apps and optional ethernet adapter. The application sends all the intended commands to the Panel by using SMS service. Application can send commands including: arm/disarm, programming, check system status, read alarm memory, receive alarm messages and operate AUX outputs all by SMS.

Features

  • 8 alarm zones
  • Supports up to 3 mixed keypads (Navigator/Saturn/LCD) or 4 Navigator keypads
  • 56 user codes can be programmed to operate by keypad PIN, radio key or access card.
  • Optional Ness Radio Interface for fully integrated wireless security.
  • Programmable Two Area partitioning can split the panel into two independent areas plus a common area.
  • Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time based user control.
  • 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.
  • Supports control via internet using Ness iComms/aComms iPhone/iPad and Android apps and optional ethernet adapter.
  • Home Mode allows partial arming, (eg, perimeter security overnight).
  • Day Mode feature allows daytime monitoring of fire doors, coolrooms etc.
  • Temporary Day Zone feature allows easy enabling/disabling of Day Mode.
  • Keypad Panic and Duress feature.
  • Two button arming feature.
  • Fire Alarm feature with different siren tones.
  • Highly flexible zone to output mapping.
  • Onboard Vibration Sensor Analyser with programmable sensitivity. Use with Nessensor™ vibration sensors.
  • Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).
  • Siren chirp and strobe flash on arming with radio key.
  • Quiet chirps option on arm/disarm by radio key.
  • True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.
  • 4 programmable auxiliary outputs (Up to 8 Aux outputs optional).
  • Optional output expander.
  • Enhanced serial data input/output via RS232.
  • Automatic reset fuses.
  • Programmable Reset Output lockout.
  • 30 event memory from KPX and Saturn keypads. 80 event memory can be accessed using Navigator keypad or NessComms™.
  • Standard defaults to suit most applications.
  • Easy programming by keypad or NessComms™ software by direct connect.
  • All programming data is permanently stored in a non-volatile memory.
  • All inputs and outputs are heavily protected against lightning and high voltage supply transients.
  • High efficiency DC power supply with dual 17VAC/20VDC power input

Specifications

Fuses

  • 2 Amp auto resetting / Siren output & Reset output.
  • 500mA auto resetting / 12 volt auxiliary outputs.
  • 200 mA auto resetting / Strobe output

General

  • Power Input: 20VDC Plug Pack (supplied)
  • Power Output: 13.8v DC @ 800mA
  • Quiescent Current Draw: 80mA with 1 keypad
  • Operating Voltage: Dual Voltage 20VDC or 17VAC
  • Rechargeable Battery: 12 volt 7.0 Amp/hour Sealed lead Acid
  • Battery Charging Current: 350mA maximum, current limited
  • Dynamic Battery Test: Backup battery is tested under load, hourly and on arming
  • Zone Outputs: 8 (D8XCEL4G) 2 x 24hr tamper inputs
  • End Of Line Resistor: Choice of 12 programmable values including N/C. Default 2200 Ohms (2.2k)
  • Maximum Keypads: 3 (Sold Separately).
  • Integrated Radio Options: Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 8 radio zones
  • Serial Header: Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
  • Integrated Access Control: Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
  • Siren Output: On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
  • Strobe Output: 12v DC timed output. Maximum 2 x 1 Watt strobe lights
  • Reset Output: 12v DC timed output. Maximum 3 x 12 Volt piezo screamers
  • Equipment Power Input: 13.8v DC output for powering detectors and other equipment. Maximum 500mA
  • AUX Outputs: Multi-pin connectors provides outputs Aux1~4, Aux5~8
  • Box Dimensions (W x H x D): 235 x 300 x 90 mm (Plastic housing)

3 Years

We Offer 3 Years for this product
