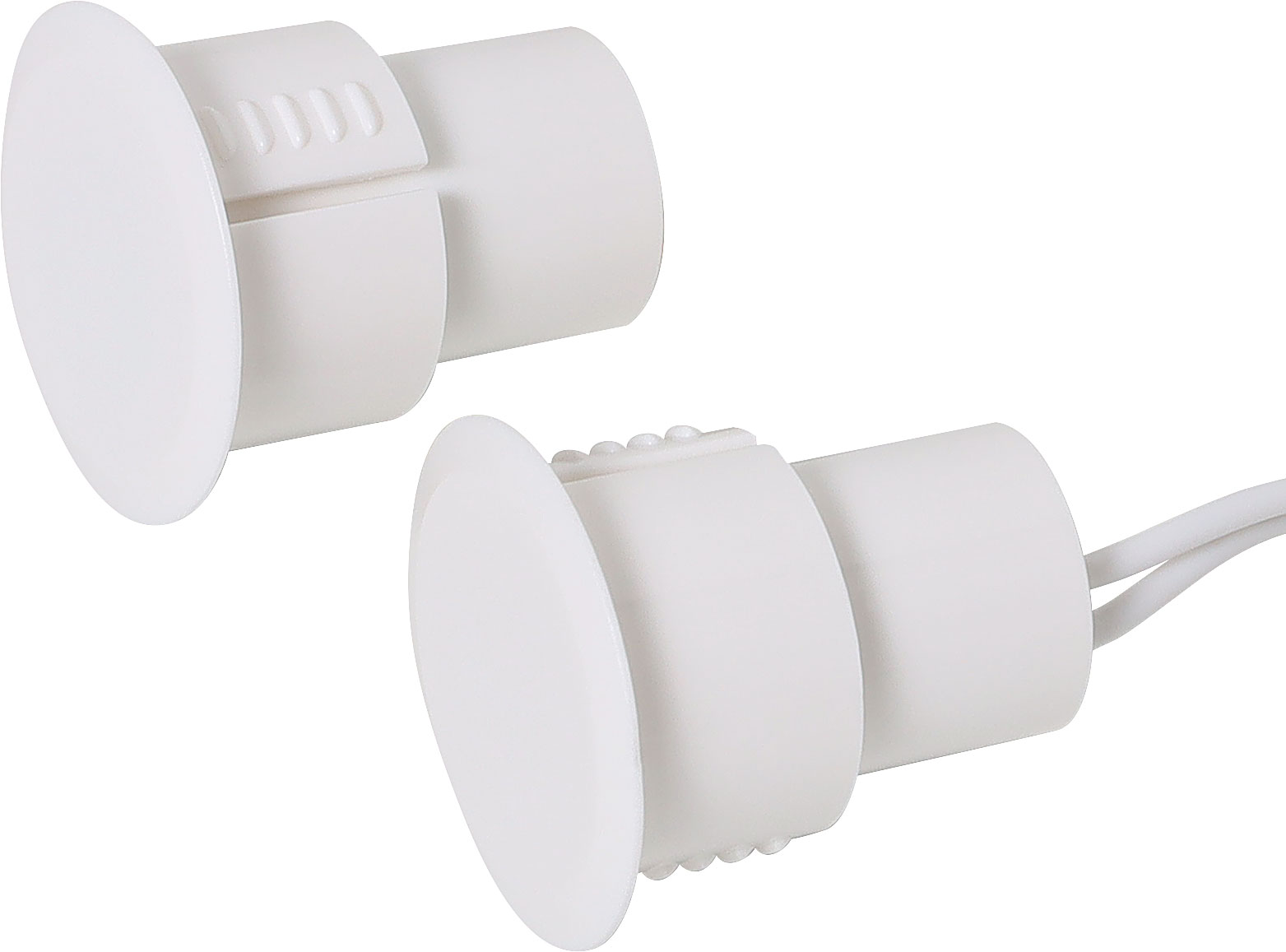

Steel Door Flush Mount Magnetic Reed Switch

SKU: S5158C
A concealed magnetic reed switch designed for use with metal door frames.
$8.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.32
4+ $7.59
10+ $6.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A concealed magnetic reed switch designed for use with metal door frames. Magnetic contact is widely used for alarm systems to detect the state of the door. It consists of a reed switch and a magnet. When the door closes, the magnet interacts with the reed switch, turning it "OFF". When the door opens, the magnet will interact with the reed switch again, turning it "ON" and triggering the alarm.

Features

  • Recessed steel door switch set
  • Self locking

Specifications

Contact Type: NC - Switch ON when magnet near

  • Operating Gsp: =30mm
  • Max Switching Voltage: 100V DC/AC
  • Max Switching Current: 0.5A
  • Operating Load: 10W
  • Working Temperature: -20 ~ 80°C
  • Working Life: >100,000 times
  • Connection Type: 350mm 1007/22AWG
  • Material: ABS
  • Colour: White/Brown

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
