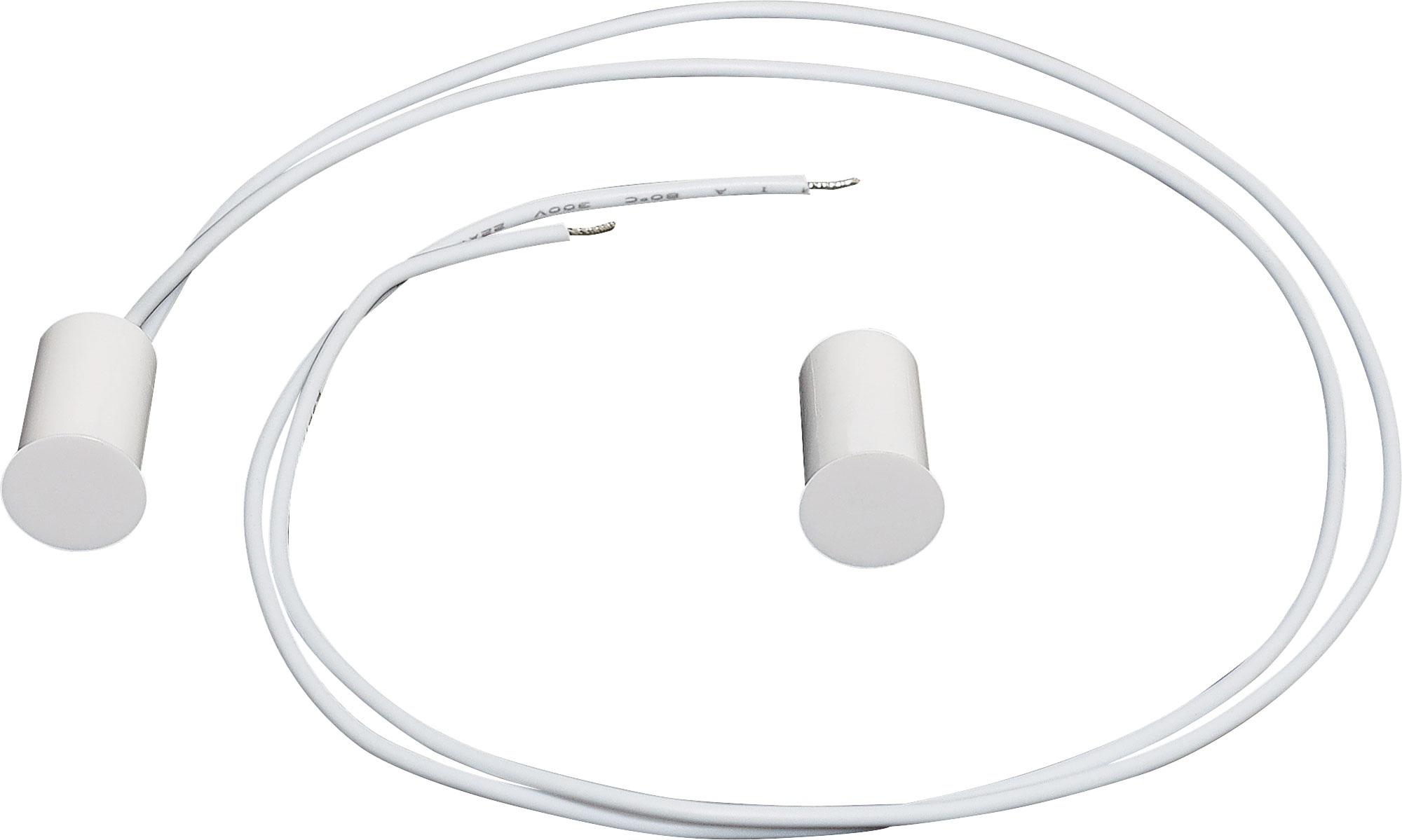

Wood Door Flush Mount Magnetic Reed Switch

SKU: S5154C
Ideal for wooden door frames. Includes matching magnet. Press fit design. 9.5mm mounting hole 12mm working distance normally closed (when next to magnet)
$5.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.18
4+ $4.73
10+ $3.95
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A concealed magnetic reed switch designed for use with wooden door frames in security applications. Includes matching magnet. Press fit design. 9.5mm mounting hole. 12mm working distance. Normally closed (when next to magnet).

Specifications

Approved:CCC / CE / FCC / RoHS

  • Contact type:NC——Switch ON when magnet nearly
  • Operating gap:=15mm (Undisturbed test)
  • Max. switching voltage:100V DC/AC
  • Max. switching current:0.5A
  • operating load:10W
  • Working temperature:-20~80?
  • Working life:>100000 times
  • Connection type:350mm 1007/22# AWG
  • Material:ABS
  • Color:White / Brown
  • Packaging:20 sets/bag,1600 sets/ctn
  • G.W.:15KGS
  • Dimensions (mm):refer to diagram

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
