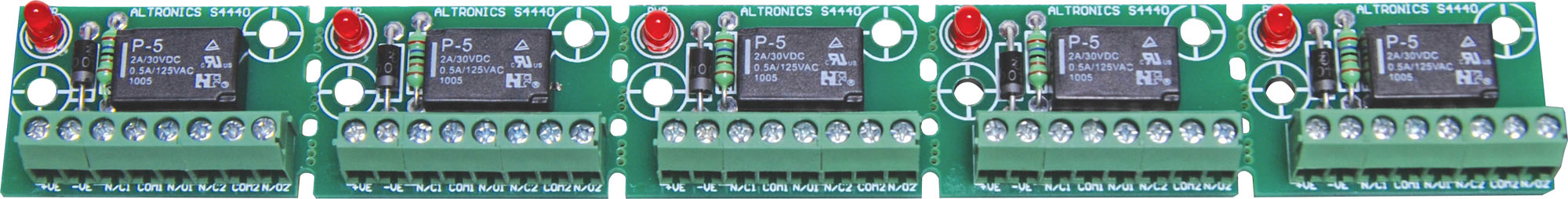

24V 5 Way DPDT Relay Board

Be the first to review this product
The S 4445 is a handy 5 way "snap off" strip board fitted with 5x 24V (S4138) relays. Two sets of changeover contacts are provided. An on board LED illuminates when the relay is activated. For 5V operation use S 4441 board. For 12V operation use
SKU: S4445
$57.50
Per ea
QuantityPrice
ea$57.50
4+$53.86
10+$50.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The S4445 is a handy 5 way "snap off" strip board fitted with 5x 24V relays. Two sets of changeover contacts are provided.
An on board LED illuminates when the relay is activated. Size: 32.5W x 22.5Dmm. 3.2mm hole size.

For 5V operation use S4441 board.
For 12V operation use S4443 board.

Note: For information and specs on the relay see S4132B.

Features

  • LED indicator
  • Dual changeover contacts

Specifications

Max Switching Voltage: 250V AC, 220V DC

  • Max Switching Current: 0.5A AC, 1A DC, 0.5A AC
  • Max VA (Watts): 62VA (30W)
  • Contact Material: Silver Palladium
  • Coil Resistance: 2880Ω
  • Max Coil Power: 200mw
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 200,000 operations 1A 24V
  • Mechanical Life: 10 million operations
  • Dimensions: 14W x 9L x 5H mm

12 Months

We Offer 12 Months for this product
