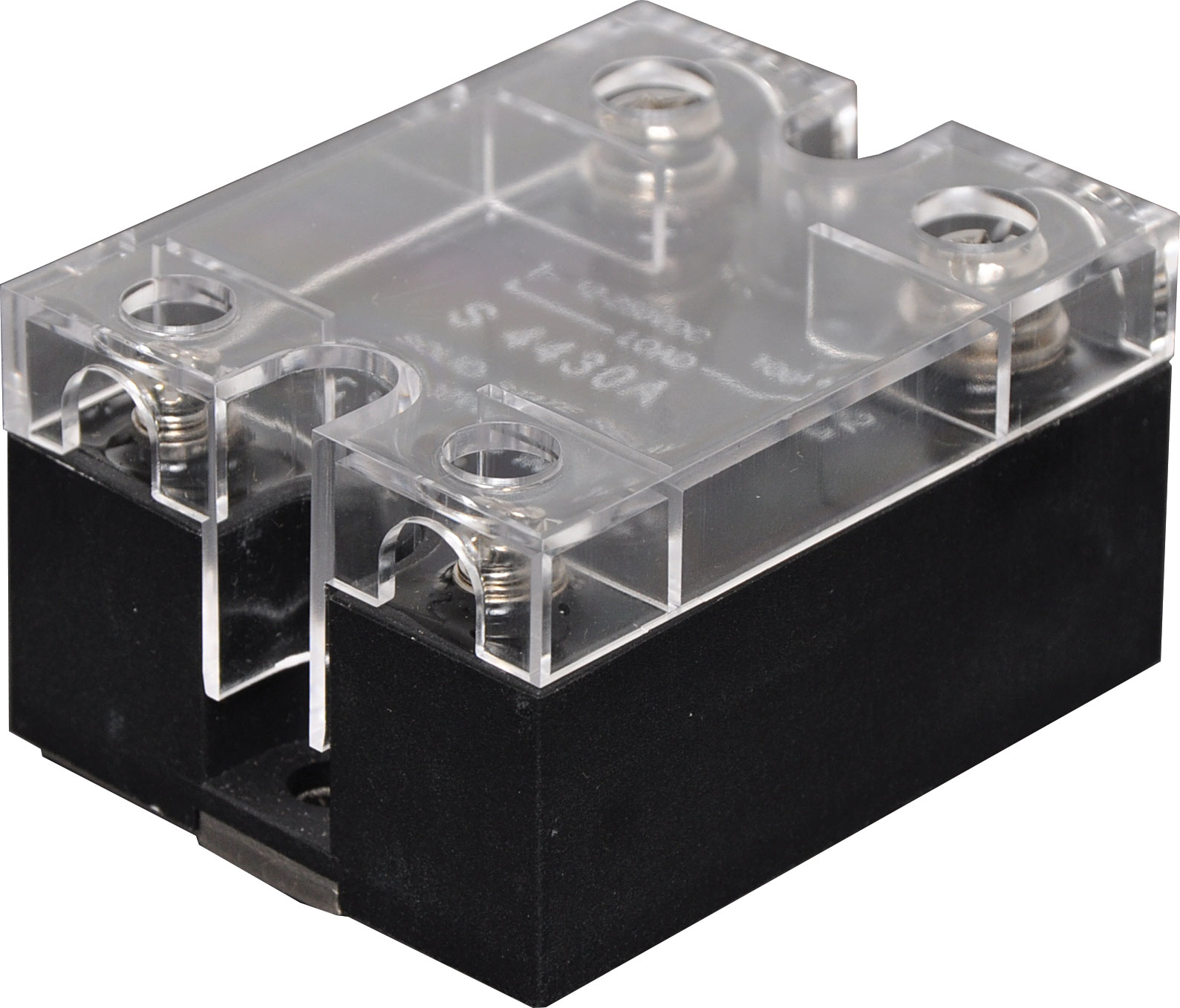

DC 100A SPST Solid State Relay

Be the first to review this product
No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off. Switches DC only. 5-30V DC coil.
SKU: S4430A
$62.68
Per ea
Quantity Price
ea $62.68
10+ $56.59
25+ $50.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

100A SPST relay. Solid state type. Switches DC only. 5-30V DC coil.
No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off.


Specifications

Control Voltage: 5-30V DC

  • Control Current: 4-25mA
  • Reverse Voltage: 30V DC
  • Closing Voltage: 1.5V DC
  • Opening Voltage: 3V DC
  • Load Voltage: 12-250V DC
  • Maximum Load Current: 10A-120A
  • Minimum Load Current: 0.08A
  • Breakover Voltage: =2V DC
  • Output Leakage Current: =1mA
  • Withstand Voltage: >2500V AC
  • Insulation Resistance: >100MΩ
  • Switching Time: <5mS
  • Load Current Safety Factor: 40-50% resistive, 20-30% inductive

12 Months

We Offer 12 Months for this product
