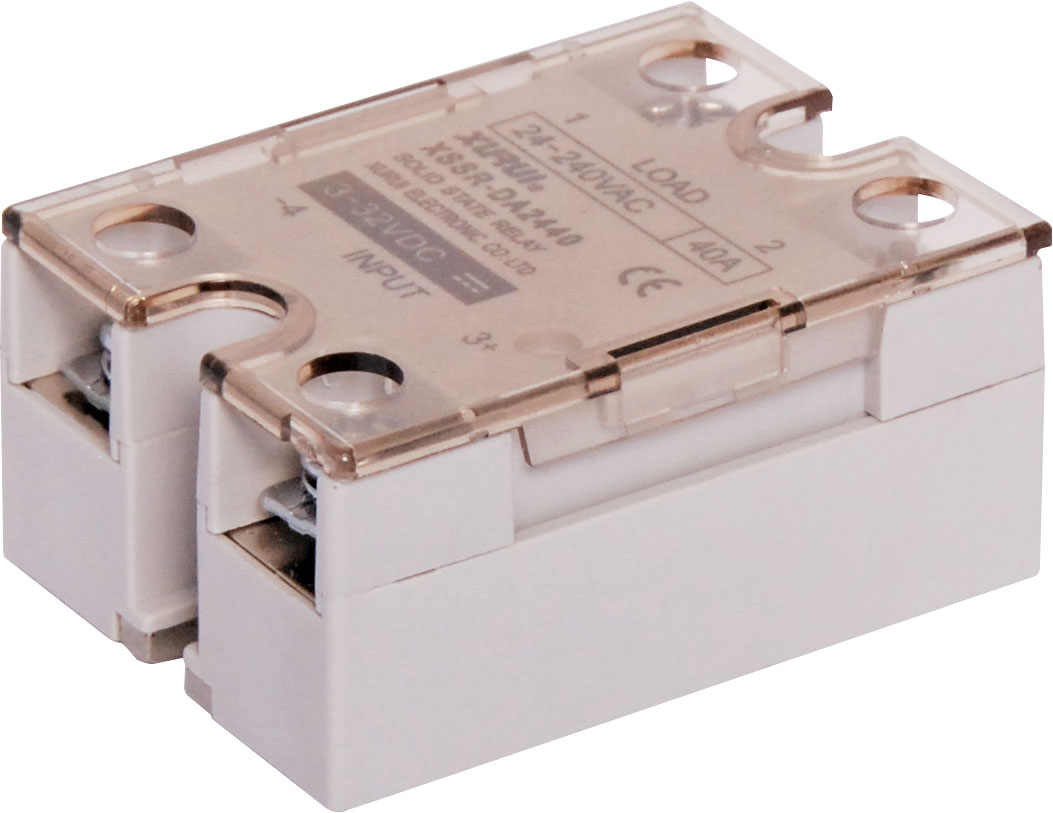

AC 40A SPST Solid State Relay

SKU: S4416A
No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off. Switches AC only. 3-32V DC coil.
$51.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $51.36
10+ $46.14
25+ $40.86
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

40A SPST relay. Solid state type. Switches AC only. 3-32V DC coil.
No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off.


When connecting to mains power this must be installed by a licensed electrician.
To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.


Specifications

Control Voltage: 3-32V DC

  • Control Current: 6-25mA
  • Reverse Voltage: 32V DC
  • Closing Voltage: 1V DC
  • Opening Voltage: 3V DC
  • Load Voltage: 24-240V AC, 75-480V AC
  • Maximum Load Current: 5A-40A
  • Minimum Load Current: 0.08A
  • Breakover Voltage: =1.6VAC
  • Output Leakage Current: =5mA
  • Withstand Voltage: 2500V AC
  • Insulation Resistance: >100MΩ
  • Switching Time: <10mS
  • Frequency Range: 50-60Hz
  • Load Current Safety Factor: 50-60% resistive, 30-40% inductive

Warranty & Returns

12 Months

We Offer 12 Months for this product
