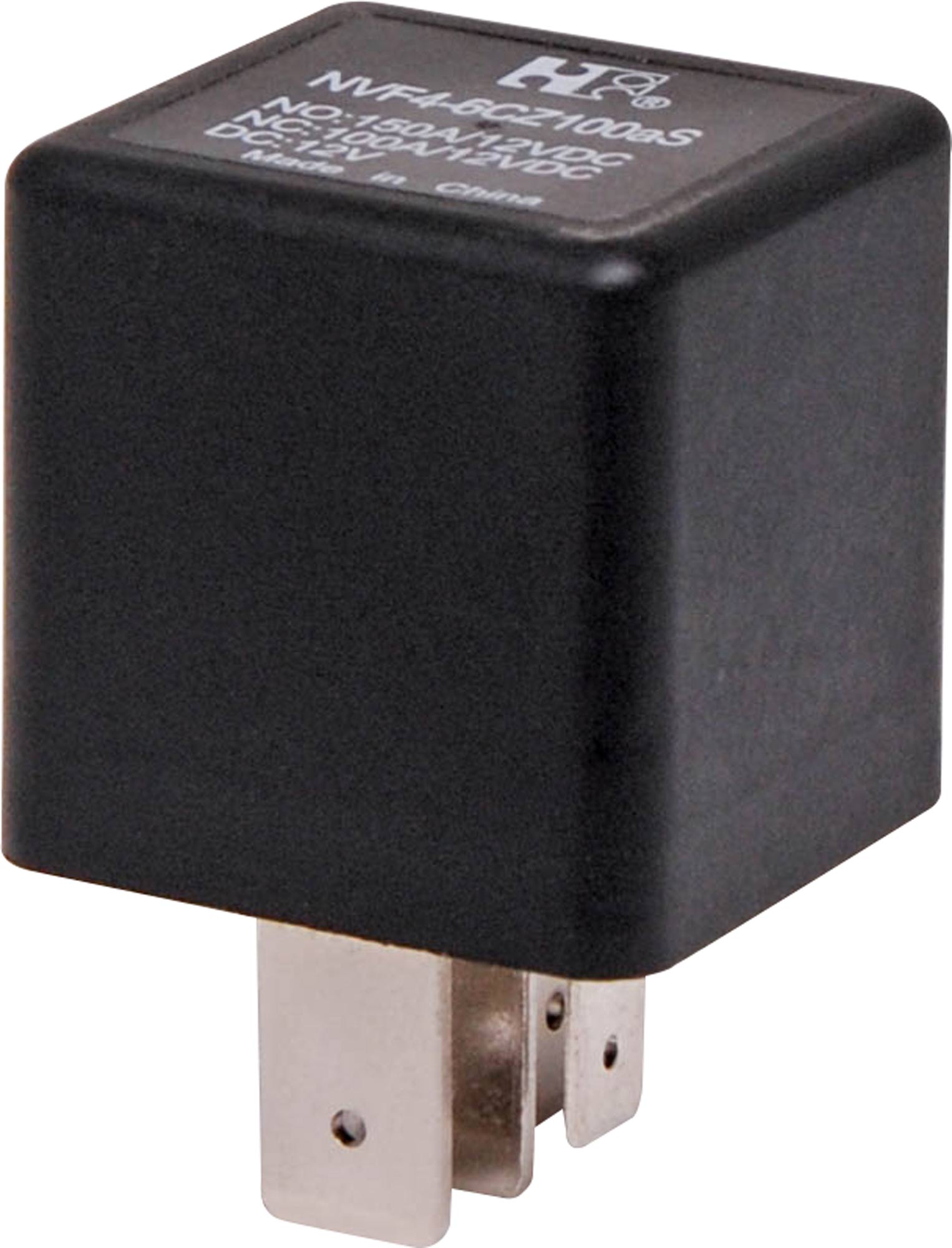

12VDC 150A SPDT Automotive Relay

SKU: S4347
Suitable for high current DC automotive applications.
$17.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $17.95
10+ $16.32
40+ $14.77
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A 150A SPDT relay. Automotive type. 12V DC coil.
Suitable for automotive applications such as alarms, driving lights, horns, fog lights etc.

Note: Not suitable for ac use.

Specifications

Max Switching Voltage dc: 75V

  • Max Switching Current dc: 150A
  • Max Switching Power dc: 1800W
  • Contact Material: Silver tin dioxide
  • Coil Resistance (12V): 50Ω
  • Max Coil Power: 2.9W
  • Insulation Resistance: >100MΩ @ 500V dc
  • Dielectric Strength (for 1 min):
  • 750V ac between open contacts
  • 1000V ac between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 33W x 35L x 33H mm
  • Coils: 6.3mm spade terminals
  • Armature: 9.5mm spade terminals

Warranty & Returns

12 Months

We Offer 12 Months for this product
