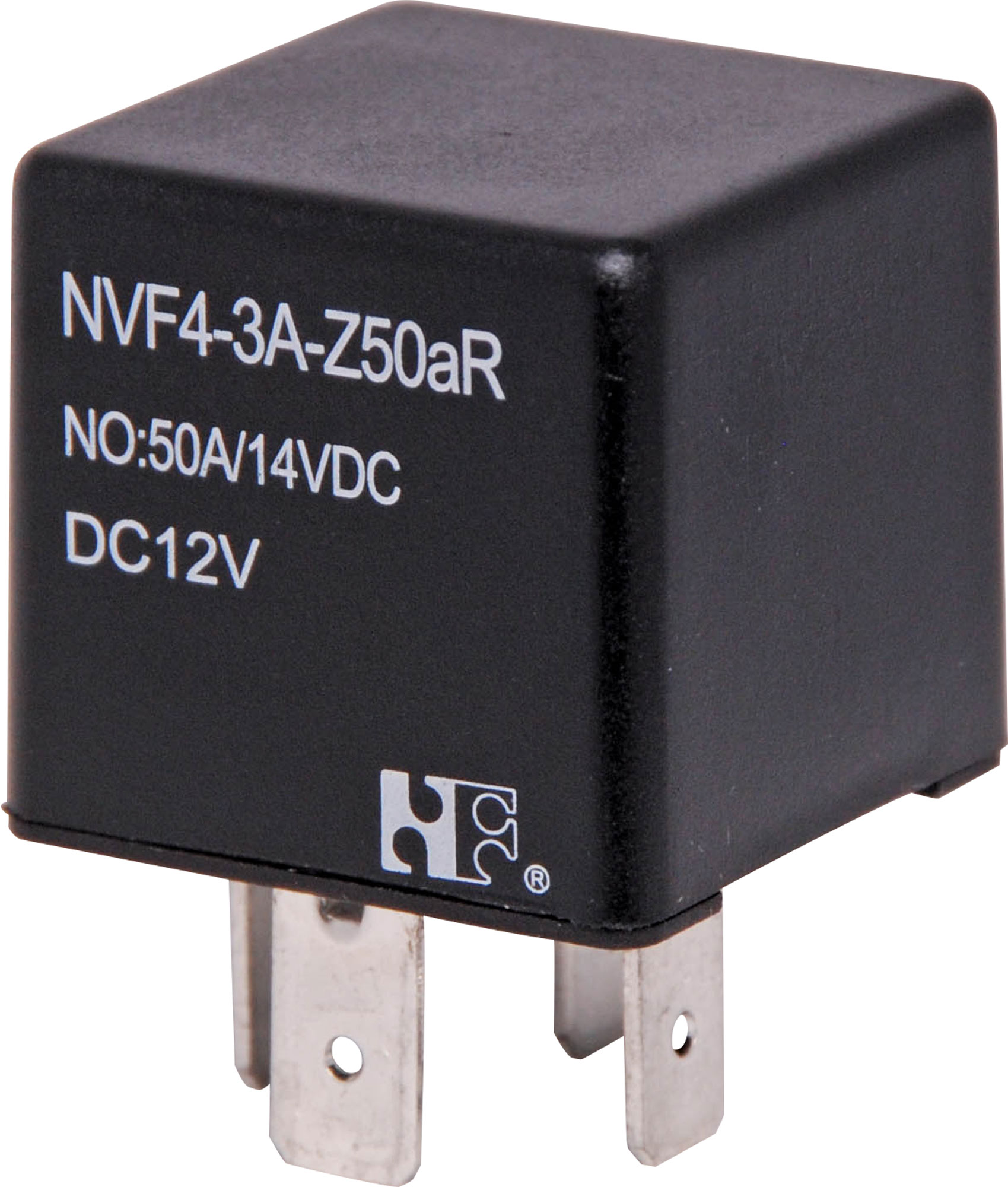

12VDC 50A SPST Automotive Relay

Be the first to review this product
Suitable for automotive applications such as alarms, driving lights, horns, fog lights etc.
SKU: S4342
$9.55
Per ea
QuantityPrice
ea$9.55
10+$8.45
40+$7.55

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A 50A SPST relay. Automotive type. 12V DC coil.
Suitable for automotive applications such as alarms, driving lights, horns, fog lights etc.

Note: Not suitable for ac use.

Specifications

Max Switching Voltage dc: 75V

  • Max Switching Current dc: 50A
  • Max Switching Power dc: 1120W
  • Contact Material: Silver tin dioxide
  • Coil Resistance (12V): 80Ω
  • Max Coil Power: 1.8W
  • Insulation Resistance: >100MΩ @ 500V dc
  • Dielectric Strength (for 1 min):
  • 500V ac between open contacts
  • 500V ac between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 29W x 29L x 26.5H mm

12 Months

We Offer 12 Months for this product
