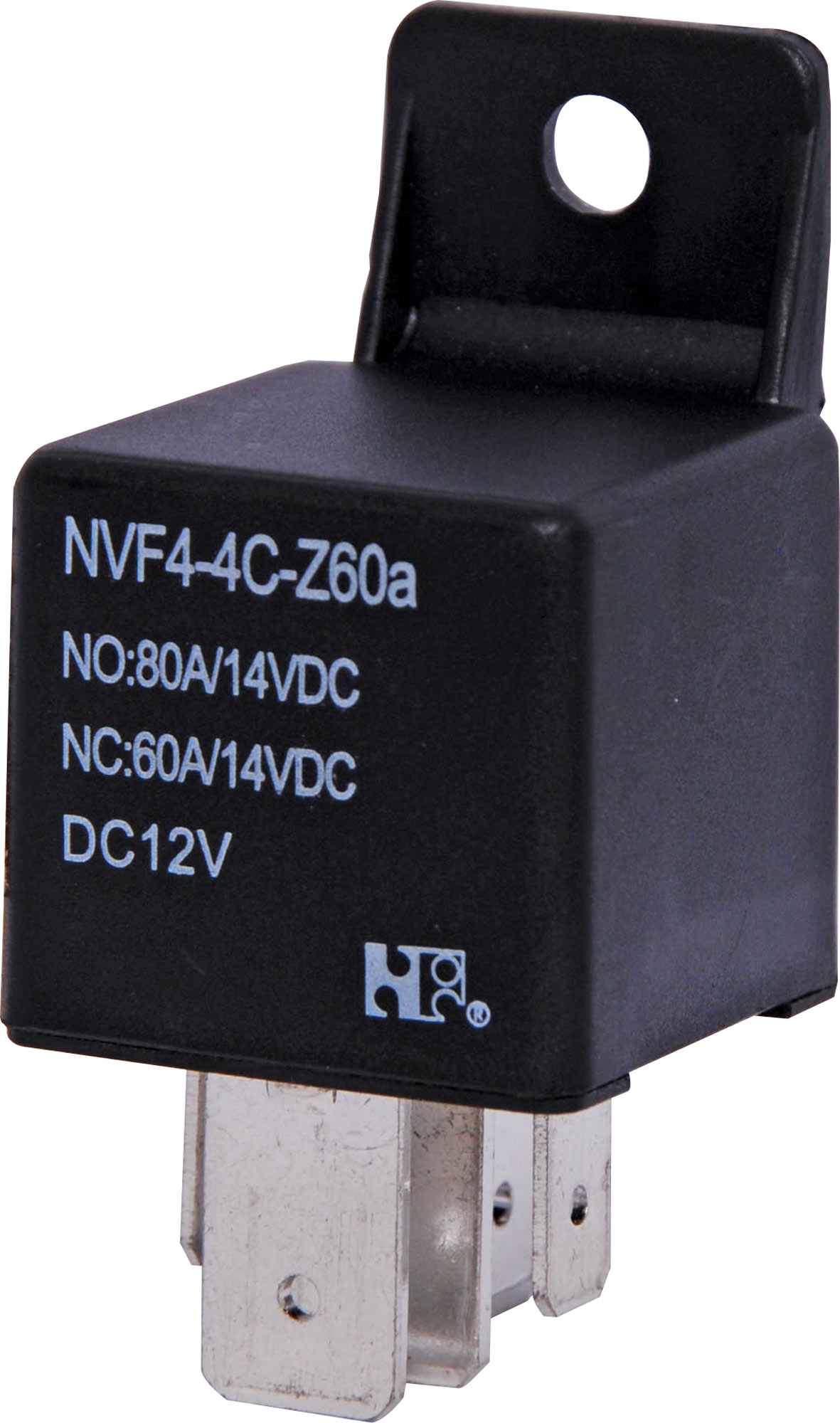

12VDC 60A SPDT Automotive Relay

Be the first to review this product
Suitable for automotive applications such as alarms, lights, etc.
SKU: S4339
$9.55
Per ea
QuantityPrice
ea$9.55
10+$8.32
40+$7.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A heavy duty 60A SPDT relay. Automotive type. 12V DC coil. Suitable for automotive applications such as alarms, lights, etc.

Specifications

Max Switching Voltage: 75V DC

  • Max Switching Current: 60A
  • Max VA (Watts): 980W
  • Contact Material: Silver tin dioxide
  • Coil Resistance: 80Ω
  • Max Coil Power: 1.8W
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 500V AC between open contacts
  • 500V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 29W x 29L x 26H mm

12 Months

We Offer 12 Months for this product
