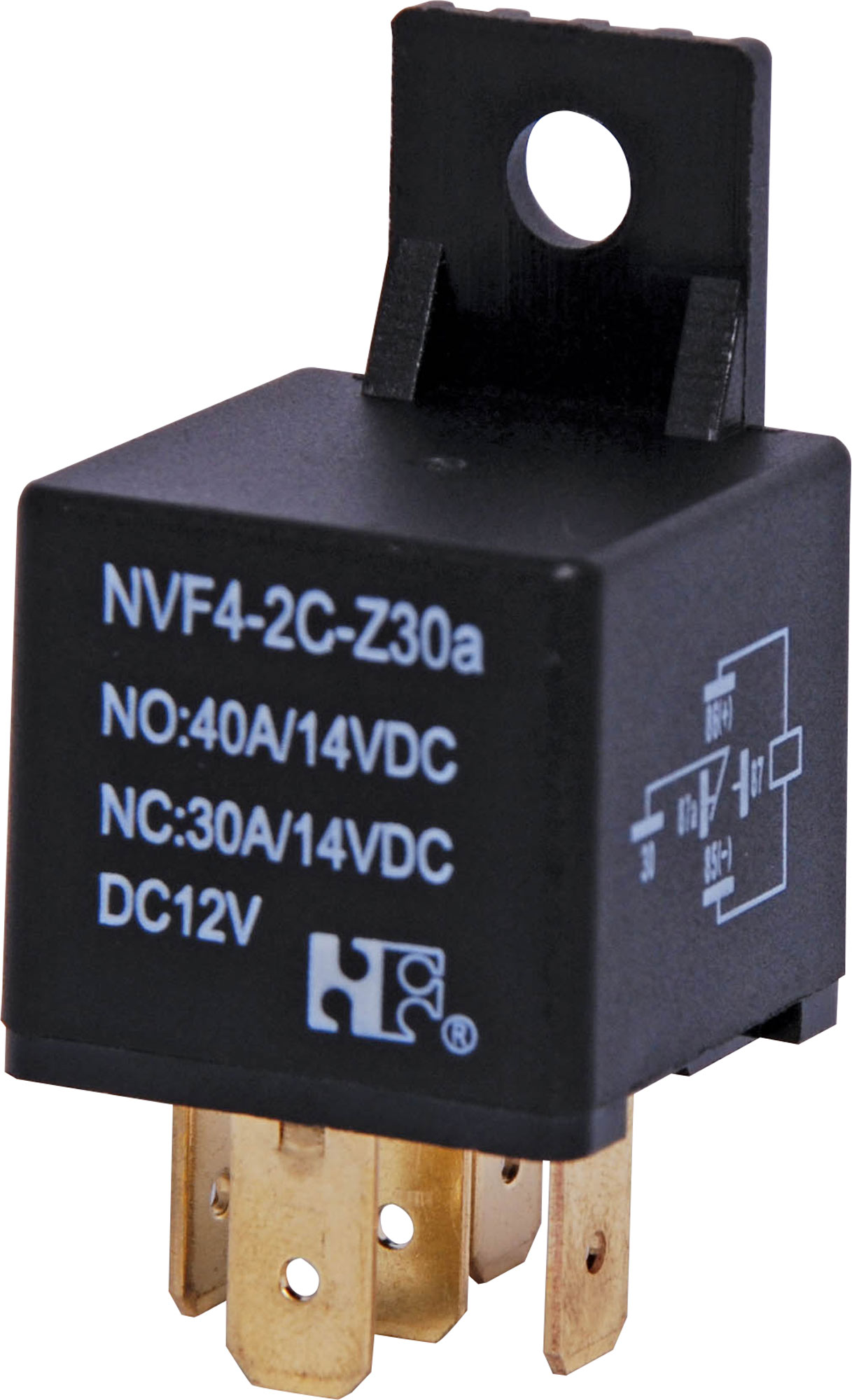

12VDC 30A SPDT Automotive Relay

Be the first to review this product
Suitable for automotive applications such as alarms, lights, etc. 30A NC rated.
SKU: S4335A
$6.23
Per ea
QuantityPrice
ea$6.23
10+$5.50
40+$4.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A 30A SPDT automotive relay with spade connections. 12V DC coil. Suitable for automotive applications such as alarms, lights, etc.

Specifications

Max Switching Voltage: 75V DC

  • Max Switching Current: 30A
  • Max VA (Watts): 630W
  • Contact Material: Silver tin dioxide
  • Coil Resistance: 90Ω
  • Max Coil Power: 1.68W
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 500V AC between open contacts
  • 750V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: ˜29W x 29L x 26H mm

12 Months

We Offer 12 Months for this product
