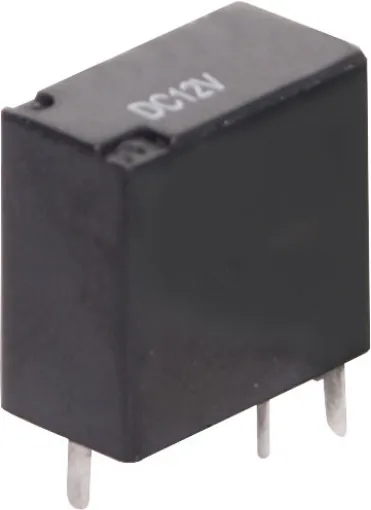

12VDC 25A SPDT Automotive Relay

SKU: S4333
Fully sealed construction (immersion cleanable).
$3.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.41
10+ $3.09
40+ $2.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A 25A SPDT relay. Automotive type. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications

Max Switching Voltage AC: Not suitable

  • Max Switching Voltage DC: 16V
  • Max Switching Current AC: Not suitable
  • Max Switching Current DC: 30A
  • Max Switching Power AC: Not suitable
  • Max Switching Power DC: 480W
  • Max Continuous Current: 25A
  • Contact Material: Silver Tin Dioxide
  • Coil Resistance: 225Ω
  • Max Coil Power: 640mw
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 500V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 7.5W x 14.5L x 14H mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
