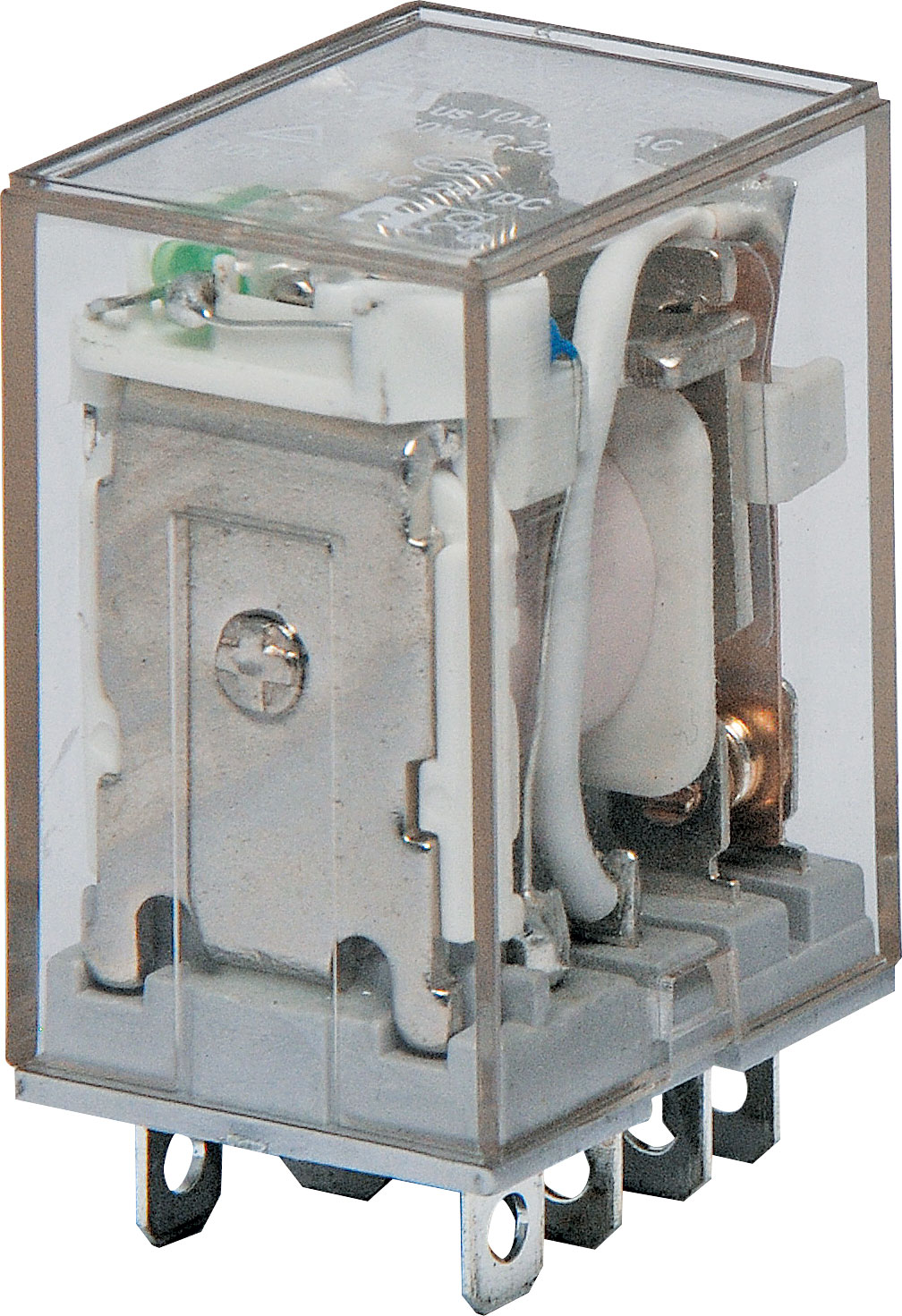

10A 12VDC DPDT Cradle Relay

Be the first to review this product
Features Inbuilt LED indicator
SKU: S4310
$8.32
Per ea
QuantityPrice
ea$8.32
10+$7.27
40+$6.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

10A DPDT relay. Cradle style featuring an in-built indicator. 12V DC coil.

Specifications

Max Switching Voltage: 300V AC, 30V DC

  • Max Switching Current: 20A (total)
  • Max VA (Watts): 280VA (280W)
  • Contact Material: Silver Cadmium Oxide
  • Coil Resistance: 160Ω
  • Max Coil Power: 900mW
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min): 1000V AC between open contacts
  • 1500V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 20 million operations
