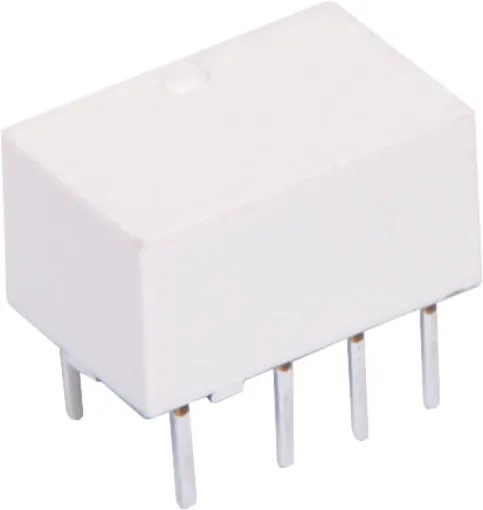

24V 2A DPDT Miniature PCB Signal Relay

Be the first to review this product
Max AC rating: 0.5A @ 125V Max DC rating: 2A @ 30V Max switching power AC: 62VA Max switching power DC: 60W
SKU: S4245
$6.23
Per ea
QuantityPrice
ea$6.23
10+$5.64
40+$5.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A compact 2A DPDT mini signal relay. PCB mount style. 24V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications

Max AC Rating: 0.5A @ 125V

  • Max DC Rating: 2A @ 30V
  • Max Switching Power AC: 62VA
  • Max Switching Power DC: 60W
  • Contact Material: Silver palladium + Gold plated
  • Coil Resistance (24V): 2880Ω
  • Max Coil Power: 200mW
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1600V AC between coil & contact
  • Life: 100,000 electrical 0.5A 125V, 10 million mechanical
  • Dimensions: 10W x 6.5L x 5.4H mm
