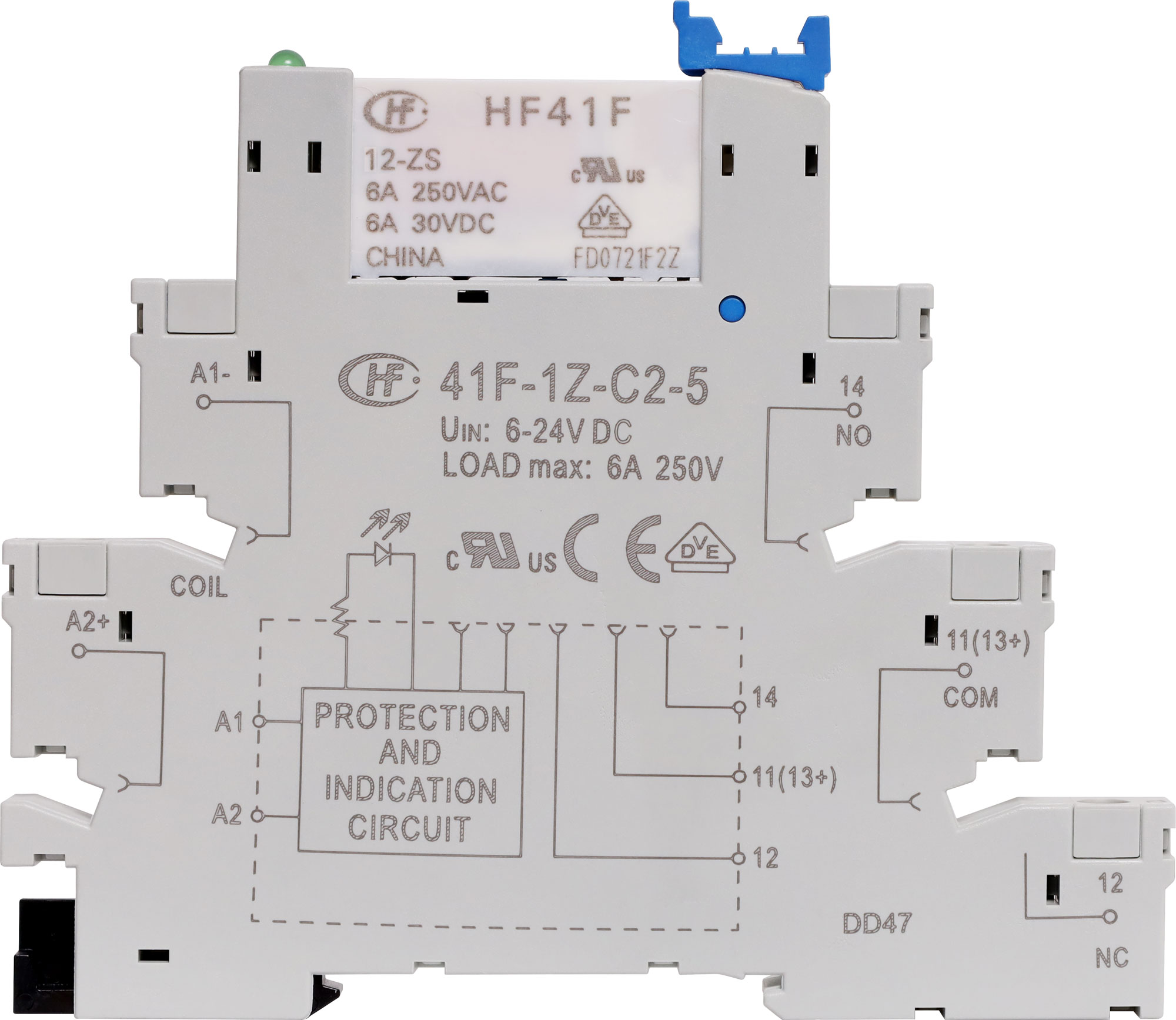

6A 12V DC SPDT DIN Rail Cradle Relay

Be the first to review this product
A super slimline DIN rail mount relay designed for industrial switching applications. Suits standard 35mm DIN rail. Supplied with 12V DC coil relay.
SKU: S4163
$16.32
Per ea
QuantityPrice
ea$16.32
10+$14.68
30+$13.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A super slimline DIN rail mount relay designed for industrial switching applications. Suits standard 35mm DIN rail. Supplied with 12V DC coil relay.

Specifications

Nominal voltage: 250V AC

  • Nominal current: 6A
  • Cradle input voltage: 6-24V AC/DC
  • Nominal coil voltage: 12V DC
  • Pick-up voltage (max): 9V DC
  • Drop-out voltage (min): 0.6V DC
  • Max voltage: 18V DC
  • Coil resistance: 848Ω. (+/- 15%)
  • Max switching power AC: 1500VA
  • Max switching power DC: 180W
  • Contact material: Silver alloy
  • Max coil power: 170mW
  • Insulation resistance: >1000MΩ @ 500V DC
  • Dielectric strength (for 1 min):
  • 1000V AC between open contacts
  • 4000V AC between coil & contact
  • Life: 60,000 electrical, 10 million mechanical

12 Months

We Offer 12 Months for this product
