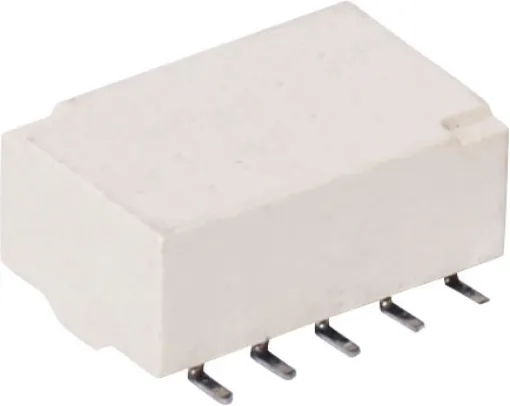

2A 24VDC DPDT SMD Telecom Relay

Be the first to review this product
Fully sealed construction
SKU: S4138
$5.45
Per ea
QuantityPrice
ea$5.45
10+$4.91
40+$4.32

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

2A DPDT telecommunications relay. SMD style. 24V DC coil.
Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing.

Specifications

Max Switching Voltage: 250V AC, 220V DC

  • Max Switching Current: 0.5A AC, 2A DC (1A DC for UL approved applications)
  • Max VA (Watts): 62VA (30W)
  • Contact Material: Silver Palladium
  • Coil Resistance: 2880Ω
  • Max Coil Power: 200mw
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 200,000 operations 1A 24V
  • Mechanical Life: 10 million operations
  • Dimensions: 14W x 9L x 5H mm
