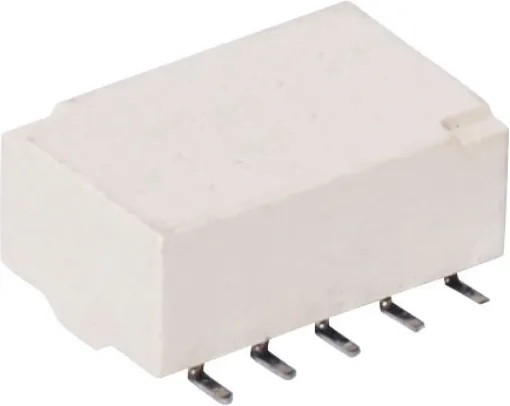

2A 3VDC DPDT SMD Telecom Relay

SKU: S4133
Fully sealed construction. 3V coil.
$5.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.91
10+ $5.32
40+ $4.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

2A DPDT telecommunications relay. SMD style. 3V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Specifications

Max Switching Voltage: 250V AC, 220V DC

  • Max Switching Current: 0.5A AC, 2A DC (1A DC for UL approved applications)
  • Max VA (Watts): 62VA (30W)
  • Contact Material: Silver Palladium
  • Coil Resistance: 64.3Ω
  • Max Coil Power: 140mw
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 200,000 operations 1A 24V
  • Mechanical Life: 10 million operations
  • Dimensions: 14W x 9L x 5H mm
