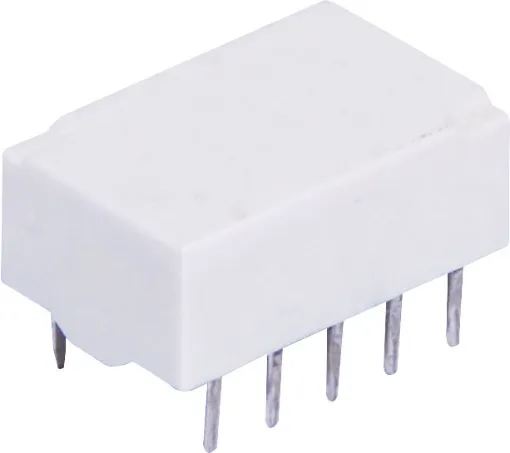

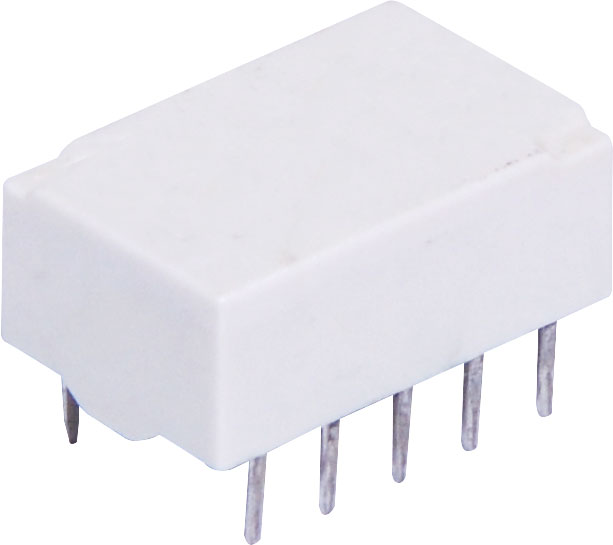

2A 24VDC DPDT PCB Mount Telecom Relay

Be the first to review this product
Fully sealed construction
SKU: S4132C
$4.73
Per ea
QuantityPrice
ea$4.73
10+$4.27
40+$3.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing.
Low coil current and High contact breakdown voltage make it suitable for a wide variety of switching applications.
2.54mm pitch pin spacing and 7.62mm width mean they can fit in an IC socket or standard pin header which makes for easy replacement and serviceability.

Specifications:

Maxswitching voltage: 250V AC, 220V DC

  • Max switching current: 0.5A AC, 2A DC
  • Max VA (Watts): 62VA (30W)
  • Contact material: Silver Palladium
  • Coil resistance: 2880Ω
  • Max coil power: 200mw
  • Insulation resistance: >1000MΩ@ 500V DC
  • Dielectric strength (for 1 min):
  • 1000V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical life: 200,000 operations 1A 24V
  • Mechanical life: 10 million operations
  • Dimensions: 14W x 9L x 5H mm

12 Months

We Offer 12 Months for this product
