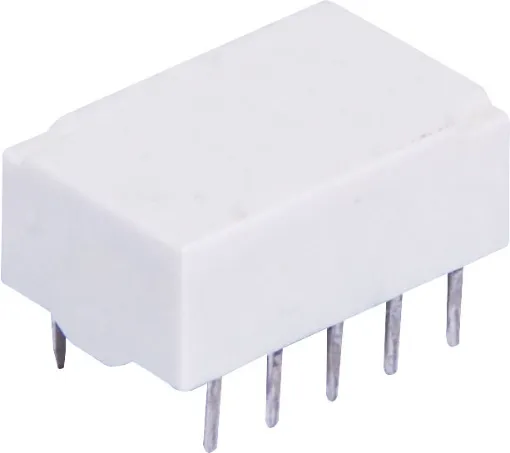

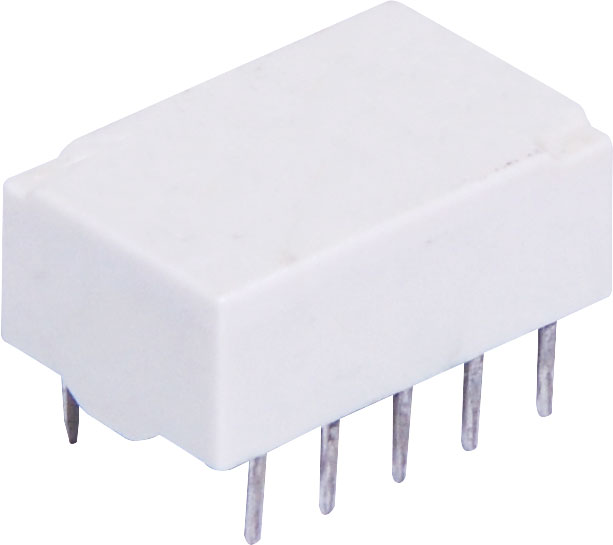

2A 12VDC DPDT PCB Mount Telecom Relay

Be the first to review this product
Fully sealed construction
SKU: S4130C
$4.73
Per ea
QuantityPrice
ea$4.73
10+$4.27
40+$3.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Fully sealed construction

Specifications:

Max switching voltage: 250V AC, 220V DC

  • Max DC switching current: 2A
  • Max VA (Watts): 62.5VA (60W)
  • Contact material: Silver Palladium (gold clad)
  • Coil resistance: 1028Ω
  • Max coil power: 140mw
  • Insulation resistance: >1000MΩ @ 500V DC
  • Dielectric strength (for 1 min):
  • 1000V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical life: 200,000 operations 1A 30V
  • Mechanical life: 10 million operations
  • Dimensions: 14.3W x 9.3L x 5.3H mm

12 Months

We Offer 12 Months for this product
