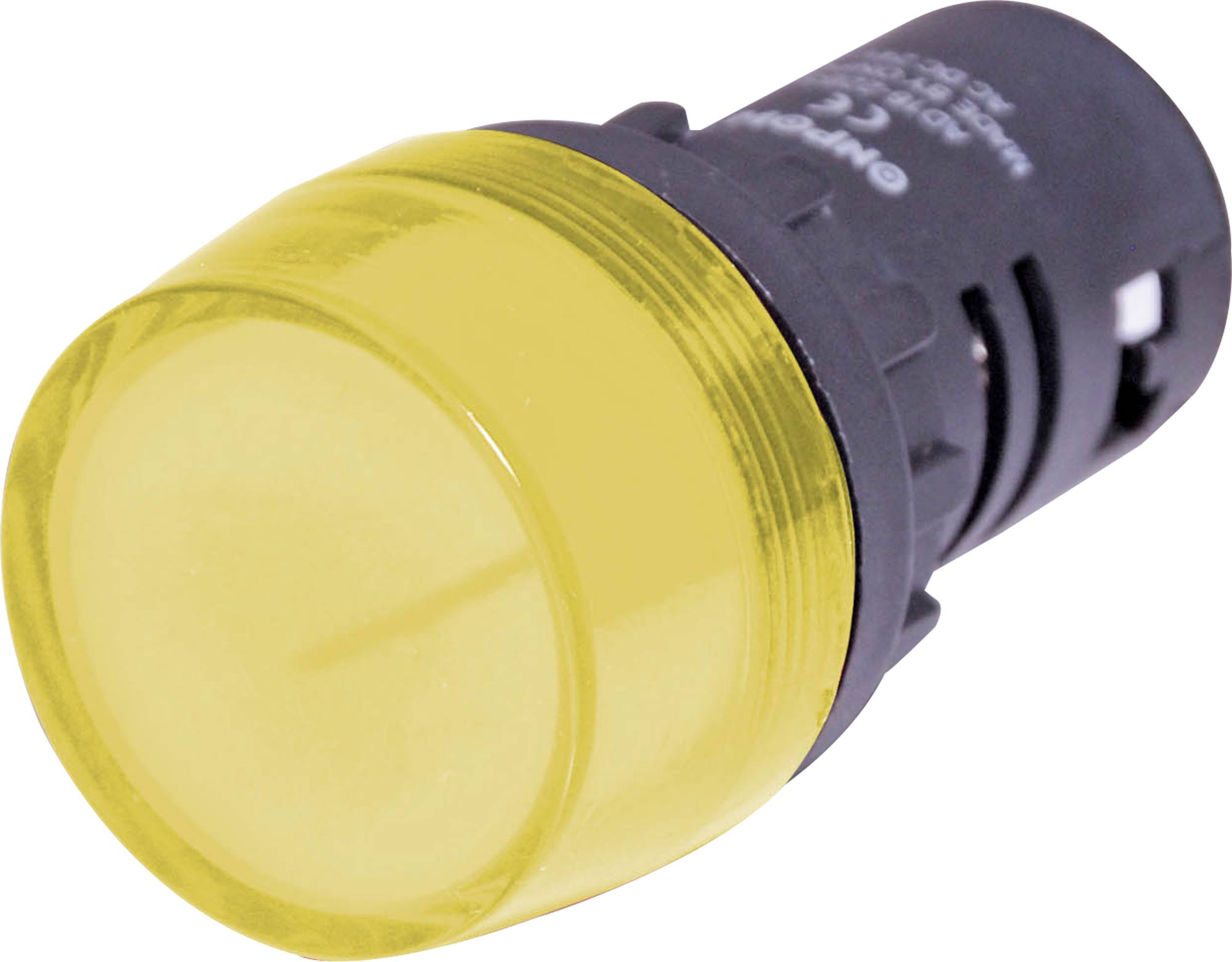

Yellow 12V AC/DC 29mm Panel Lamp

SKU: S4052
Voltage: 12V Electrical life: 30,000 hours Dialectric strength: 2.5KV (AC RMS), 1min Frequency: 50-60Hz Rated operating current: <20mA Brightness: >100cd/m2 Insulation resistance: 5M Ohm IP Class: IP40.
$7.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.27
10+ $6.55
20+ $5.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A series of industrial panel indicator lamps suitable for 12V DC systems.
Featuring a large 29mm diameter for easy viewing from long distance.
39mm depth from rear of panel. Suits panel thickness up to 6mm.
Connects using 4mm side entry screw terminals.

Available in red, green, yellow, orange, blue and white.

P8030-32 allow mounting to standard wall plate for custom requirements.

See H2071A for fork terminals to suit

Diagram

Specifications

Voltage: 12V

  • Electrical Life: 30,000 hours
  • Dielectric Strength: 2.5KV (AC RMS), 1min
  • Frequency: 50-60Hz
  • Rated Operating Current: <20mA
  • Brightness: >100cd/m2
  • Insulation Resistance: 5M Ohm
  • IP Class: IP40.

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
