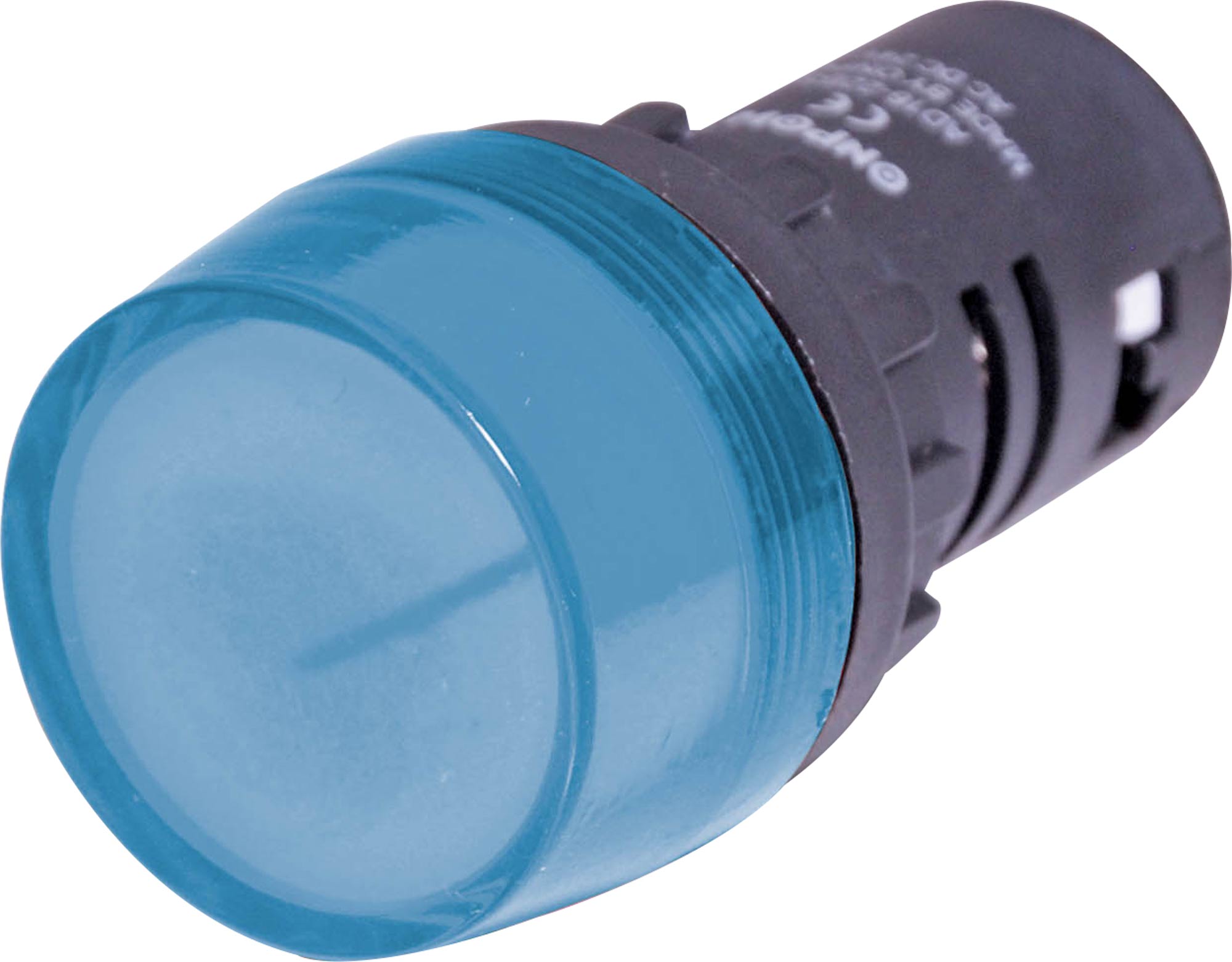

Blue 24V AC/DC 29mm Panel Lamp

Be the first to review this product
Voltage: 24V Electrical life: 30,000 hours Dialectric strength: 2.5KV (AC RMS), 1min Frequency: 50-60Hz Rated operating current: <20mA Brightness: >100cd/m2 Insulation resistance: 5M Ohm IP Class: IP40.
SKU: S4034
$7.27
Per ea
Quantity Price
ea $7.27
10+ $6.55
20+ $5.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A series of industrial panel indicator lamps suitable for 24V DC systems.
Featuring a large 29mm diameter for easy viewing from long distance.
39mm depth from rear of panel. Suits panel thickness up to 6mm.
Connects using 4mm side entry screw terminals.

Available in red, green, yellow, amber, blue and white.

P8030-32 allow mounting to standard wall plate for custom requirements.

See H2071A for fork terminals to suit


Diagram

Specifications:

Voltage: 24V

  • Electrical Life: 30,000 hours
  • Dielectric Strength: 2.5KV (AC RMS), 1min
  • Frequency: 50-60Hz
  • Rated Operating Current: <20mA
  • Brightness: >100cd/m2
  • Insulation Resistance: 5M Ohm
  • IP Class: IP40.

12 Months

We Offer 12 Months for this product
