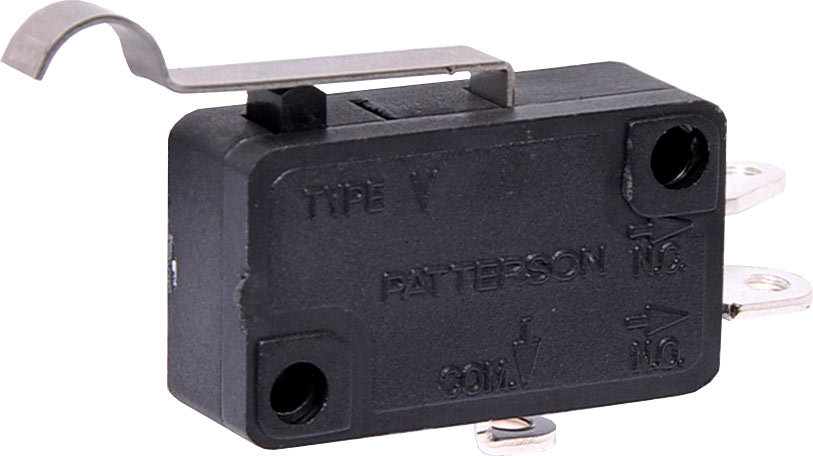

SPDT Momentary Solder Tail Microswitch (15A)

Be the first to review this product
Rating: 15A 125 / 250 VAC Type: SPDT Actuator: None
SKU: S3270
$6.00
Per ea
QuantityPrice
ea$6.00
10+$5.55
40+$4.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A handy miniature limit microswitch with 27mm rolled edge actuator. High current version for heavier duty circuit applications. Ideal for replacement or new mechatronic designs.

Specifications

Rating: 15A 125 / 250 VAC

  • Terminal: A ( Solder )
  • Circuit Position: S.P.D.T.
  • Operating Force (OF): max.200 g
  • Releasing Force (RF): min. 28 g
  • Pre-Travel (PT): max. 2.5mm
  • Over-Travel (OT): min. 1.6mm
  • Movement Differential (MD): max. 1.2mm
  • Operating Position (OP): 18.2+1.2mm
  • Dielectric Strength (between contacts): 1,000 VAC ; 50 / 60 HZ for 1 minute
  • Dielectric Strength (between terminal and ground): 1,500 VAC ; 50 / 60 HZ for 1 minute
  • Mechanically Service Life: 5,000,000 operations / (min.)
  • Electrically Service Life: 500,000 operation /(min.)(at rated load)
  • Ambient Temperature: 25°C ~ 180°C

12 Months

We Offer 12 Months for this product
