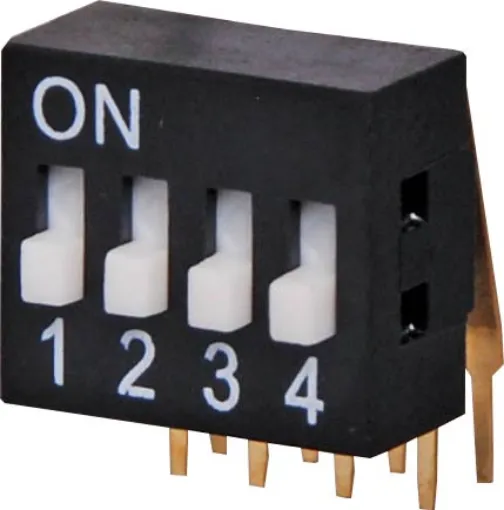

4 Way 90 Degree DIP Switch

SKU: S3094
Gold plated contacts and pins. Durable self wiping contacts.
$2.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.36
10+ $2.14
40+ $1.91
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Gold plated contacts and pins. Durable self wiping contacts.

Specifications:

Rating: 50V DC 100mA continuous, 24V DC 25mA switching

  • Contact resistance: 50mΩ max. initially
  • Insulation resistance: 100MΩ min.
  • Operation life: Average 2000 min.
  • Dielectric breakdown voltage: 500V AC min.
  • Operation force: 1000gf max.
  • Terminals: Gold plated
  • DIL switch package width: 11.52mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
