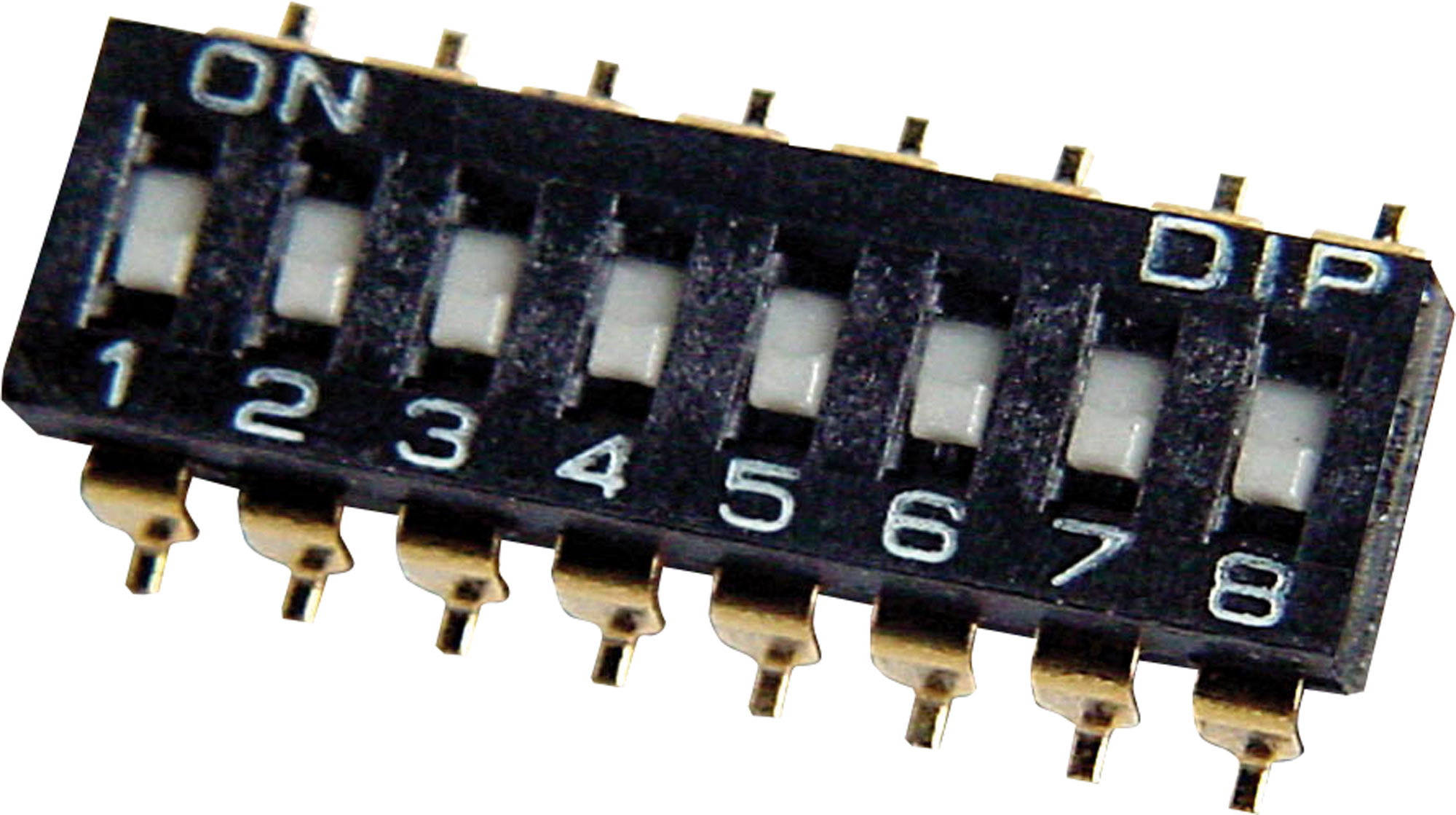

8 Way SMD DIP Switch (24 Pack)

Be the first to review this product
Gold plated contacts and pins. Durable self wiping contacts.
SKU: S3088
$3.05
Per ea
QuantityPrice
ea$3.05
10+$2.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Gold plated contacts and pins. Durable self wiping contacts.

Specifications

Rating: 50V DC 100mA continuous, 24V DC 25mA switching

  • Contact resistance: 50mž max. initially @ 100mA
  • 100mž max. after life test
  • Insulation resistance: 100Mž min.
  • Operation life: 2000 operations per switch
  • Capacitance: 5pF max. between adjacent terminals
  • Dielectric breakdown voltage: 500V DC min.
  • Operation force: 1000gf max
  • Terminals: Gold plated

12 Months

We Offer 12 Months for this product
