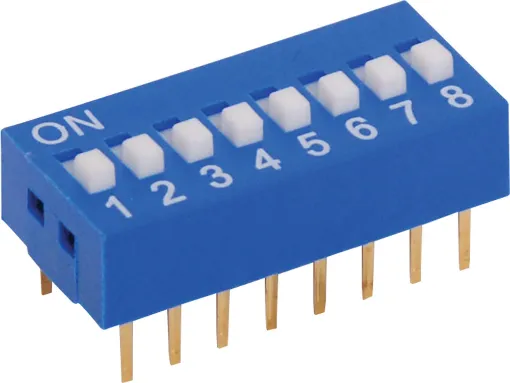

8 Way DIP Switch

SKU: S3060
Gold plated contacts and pins. Durable self wiping contacts.
$2.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $2.36
10+ $2.05
40+ $1.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Gold plated contacts and pins. Durable self wiping contacts.

Specifications:

Rating: 50V DC 100mA continuous, 24V DC 25mA switching

  • Contact Resistance: 30m Ohm max. initially @ 100mA
  • 100m Ohm max. after life test
  • Insulation Resistance: 1000M Ohm min.
  • Operation Life: Average 10,000 min.
  • Capacitance: 5pF max. between adjacent terminals
  • Dielectric Breakdown Voltage: 500V DC min.
  • Operation Force: 500g max
  • Case, Cover & Actuators: UL94-VO, PBT plus glass fibre
  • Terminals: Gold plated phosphor bronze

No of switches: 8 Dimension "A" : 21.68mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
