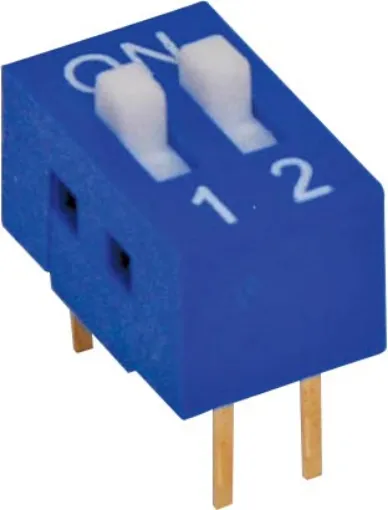

2 Way DIP Switch

Be the first to review this product
Gold plated contacts and pins. Durable self wiping contacts.
SKU: S3045
$1.50
Per ea
QuantityPrice
ea$1.50
10+$1.36
40+$1.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Gold plated contacts and pins. Durable self wiping contacts.

Specifications:

Rating: 50V DC 100mA continuous, 24V DC 25mA switching

  • Contact Resistance: 30m Ohm max. initially @ 100mA
  • 100m Ohm max. after life test
  • Insulation Resistance: 1000M Ohm min.
  • Operation Life: Average 10,000 min.
  • Capacitance: 5pF max. between adjacent terminals
  • Dielectric Breakdown Voltage: 500V DC min.
  • Operation Force: 500g max
  • Case, Cover & Actuators: UL94-VO, PBT plus glass fibre
  • Terminals: Gold plated phosphor bronze

No of switches: 2 Dimension "A" : 6.44mm
