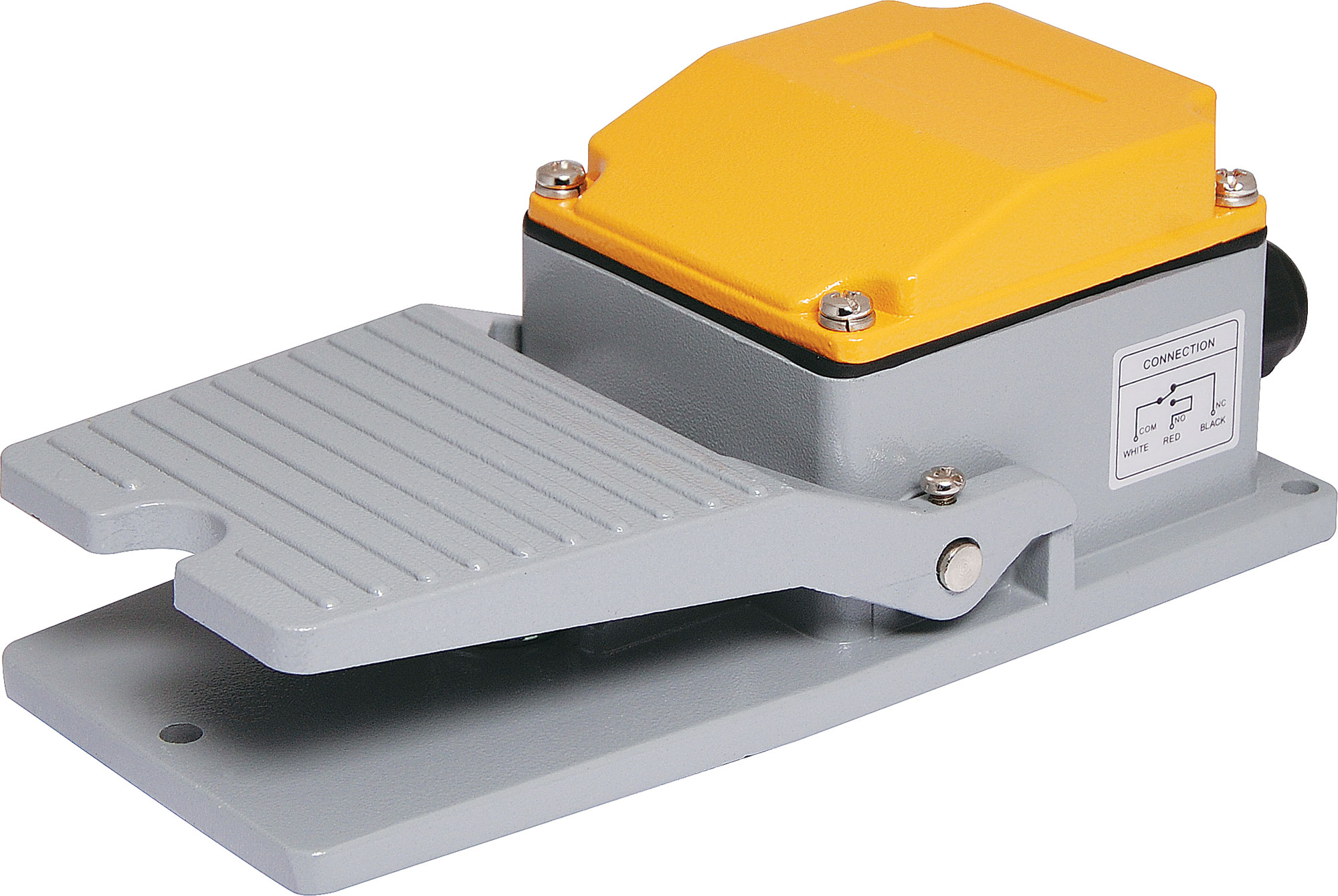

Momentary SPDT IP65 Heavy Duty Foot Pedal Switch

SKU: S2704
Designed for foot operation of DC powered equipment. Diecast aluminium casing ensures a long life. Requires screw mounting to surface. 198L x 98W x 73Hmm.
$62.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $62.68
2+ $57.50
4+ $52.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Momentary action, designed for foot operation of DC powered equipment. Diecast aluminium casing ensures a long life. Requires screw mounting to surface. 198L x 98W x 73Hmm.

Specifications

Contact: 1C

  • Material: Aluminium.
  • Contact resistance: 25mΩ
  • Contact rating: 5A @ 12-48V dc
  • Insulation resistance: 100MΩ DC500V
  • Dielectric strength: =2000V AC
  • Electrical life: >100,000 operations
  • Ingress protection: IP65
  • Temperature rating: -25 deg. C to +75 deg. C.
  • Humidity rating: <85%
  • Thread (cable gland): Size G1/2.

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
