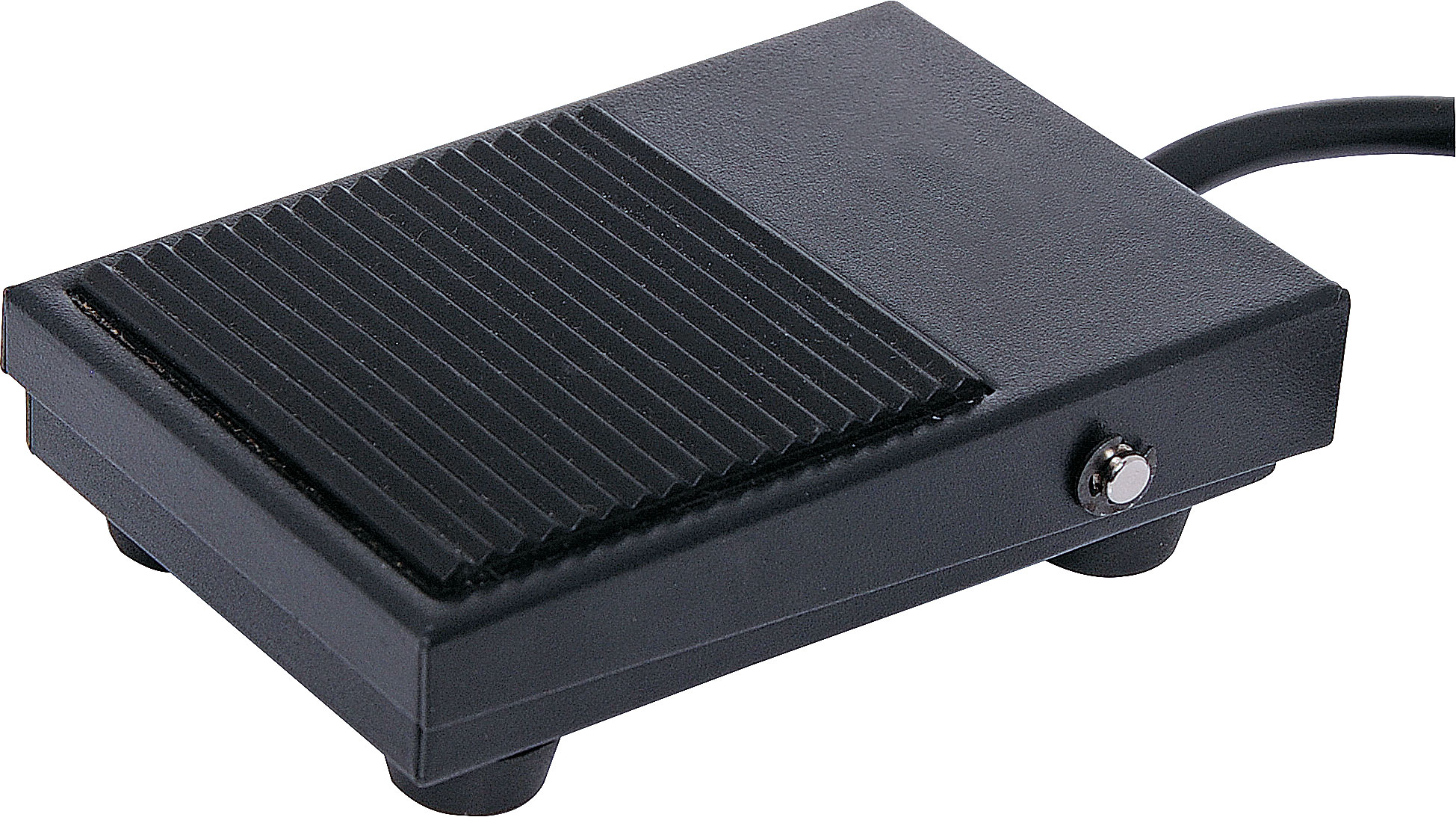

Momentary SPDT IP54 Low Profile Foot Pedal Switch

SKU: S2700
Designed for foot operation of DC powered equipment. Metal casing ensures a long life. Fitted with rubber feet and 1m cable. 102L x 66W x 30Hmm.
$26.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $26.14
2+ $24.77
4+ $23.18
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Momentary footswitch designed for foot operation of DC powered equipment. Metal casing ensures a long life. Fitted with rubber feet and 1m cable. 102L x 66W x 30Hmm.

Specifications

Contact: 1C

  • Material: Rind iron.
  • Contact resistance: 25mΩ
  • Contact rating: 5A @ 12-48V dc
  • Insulation resistance: 100MΩ DC500V
  • Dielectric strength: =2000V AC
  • Electrical life: >100,000 operations
  • Ingress protection: IP54
  • Temperature rating: -25 deg. C to +75 deg. C.
  • Humidity rating: <85%

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
