New
RoHS

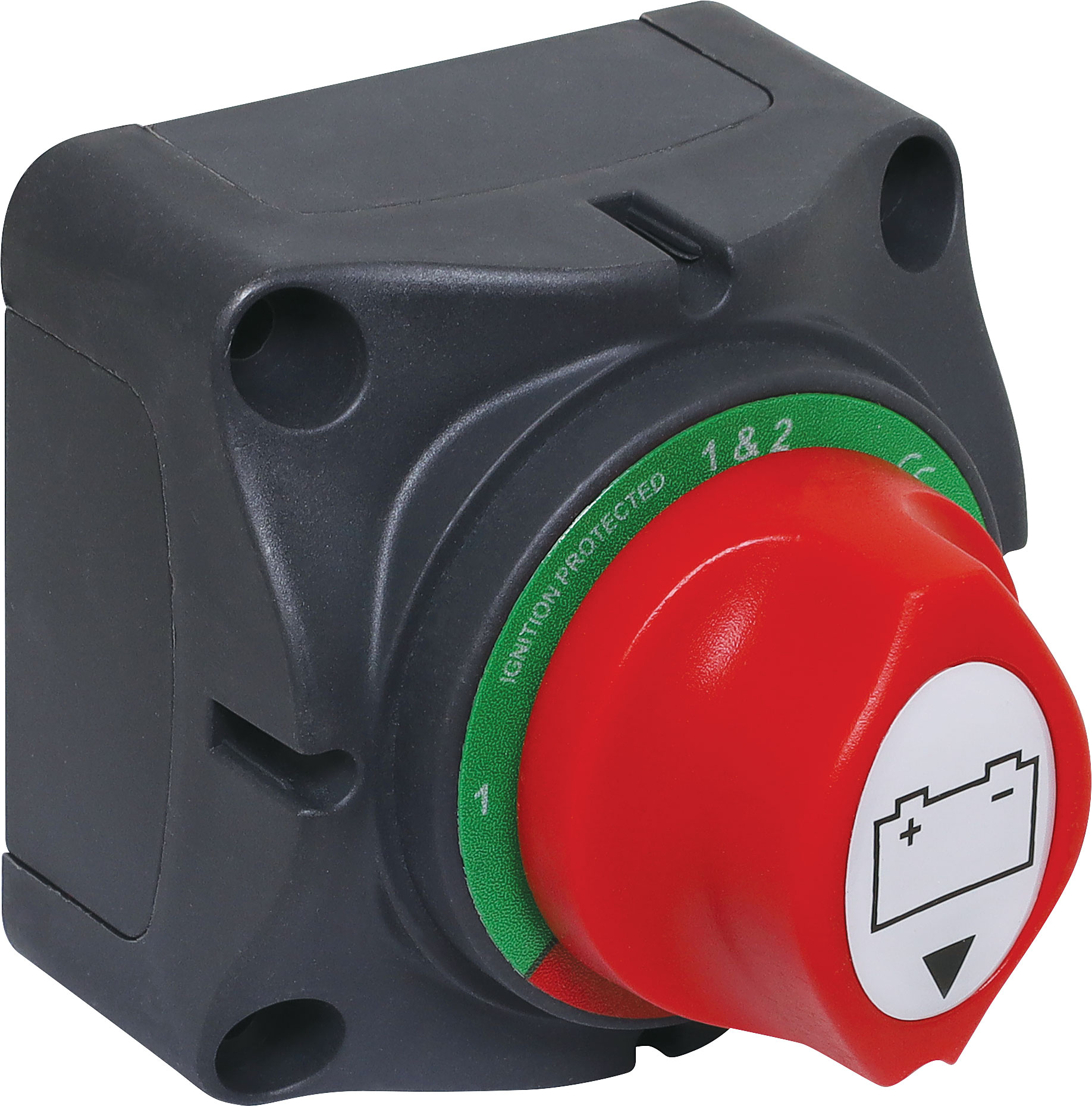

Rotary Dual Bank Battery Isolator Switch

Be the first to review this product
Four way rotary battery bank selector. Switch selections are, bank 1, bank 2, bank 1 & 2, OFF.
SKU: S2695A
$36.32
Per ea
QuantityPrice
ea$36.32
3+$32.68
6+$29.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Four way rotary battery bank selector. Switch selections are, bank 1, bank 2, bank 1 & 2, OFF. Ideal for marine and automotive use or in remote power systems where battery banks are utilised. Knob can be removed as a security feature when in isolated position to prevent tampering.

Specifications

Continuous Rating: 275A at 12VDC (200A at max 50VDC)

  • Cranking Rating: 1250Amps at 12VDC (1000A at max 50VDC)
  • Terminal Size: M10
  • Electrical Life: >10000 cycles
  • Dimensions: 68 x 68 x 75 mm

12 Months

We Offer 12 Months for this product
