New
RoHS

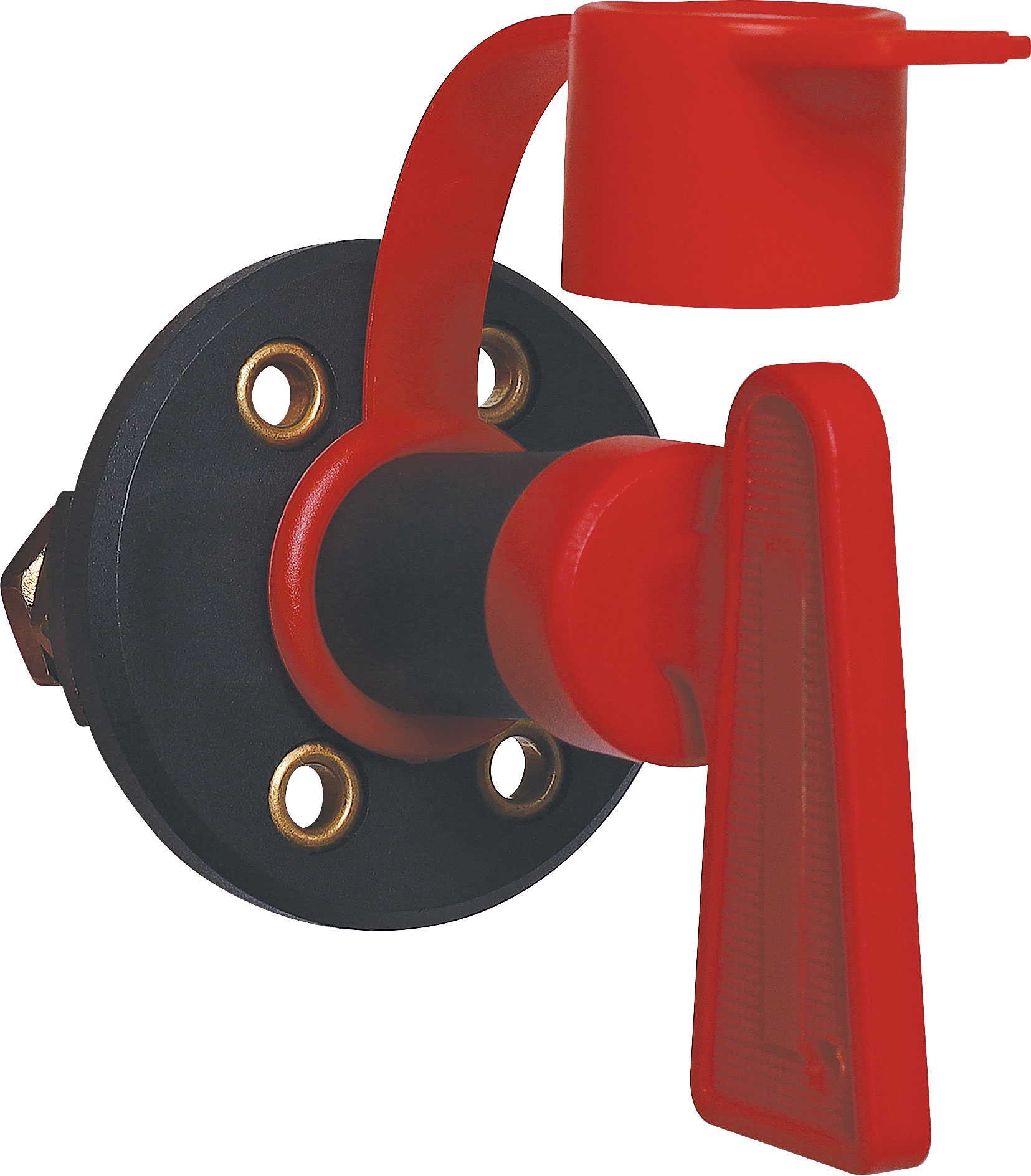

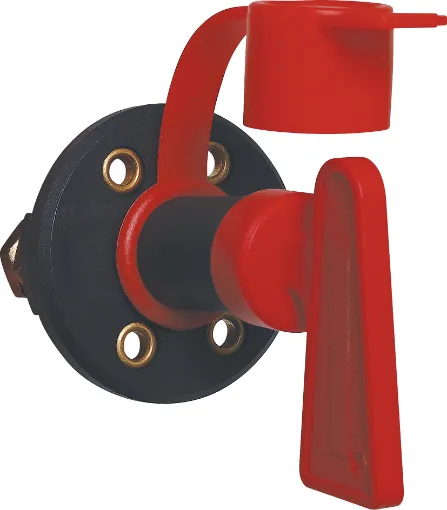

Battery Isolator Key Switch

Be the first to review this product
This waterproof battery disconnect switch ins made up of 1 x battery switch, 1 x key and 1 x waterproof cover.
SKU: S2690A
$18.14
Per ea
QuantityPrice
ea$18.14
4+$16.32
10+$14.50

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This waterproof battery disconnect switch is made up of 1 x battery switch, 1 x key and 1 x waterproof cover. The key can be tightly fitted to prevent battery depletion and theft. The waterproof cover can prevent dust and water and extend service life. Key is removable. Rubber cap prevents dust and debris building up.

Features

  • Sturdy construction
  • Great compatibility
  • Safety protection
  • Wide range of applications

Specifications

Performance

  • Circuit: 2P, ON/OFF
  • Rated Voltage: 60V
  • Rated Current: 300A
  • Insulation Resistance: =100MΩ
  • Contact Resistance: =50MΩ
  • Dielectric Strength: =1500V AC (min)
  • Cycle Life: =10,000 cycles

Material

  • Spring: Spring steel wire
  • Nut: Brass H59
  • Shaft Terminals: Brass H59 M10
  • Contact Plate: Manganese steel
  • Base/Housing/Bracket/Insert/Handle: PA66+10%GF

12 Months

We Offer 12 Months for this product
