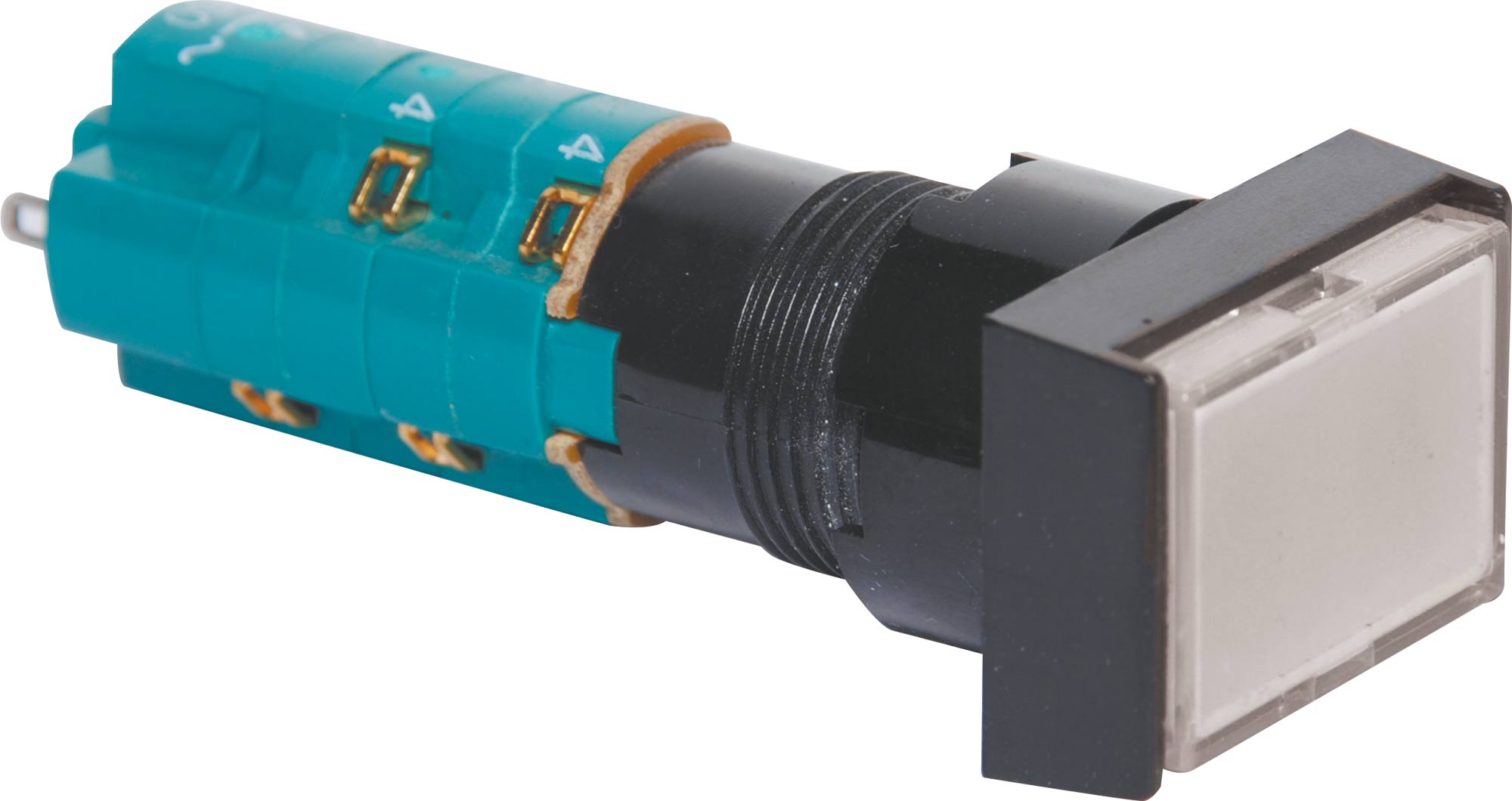

4PST Alt. White Illuminated Solder Tail Pushbutton Switch

SKU: S1736
Alternate action type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover.
$19.55

All Prices Shown are (ex GST)

Bulk Pricing
ea $19.55
4+ $17.18
10+ $15.91
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Alternate action type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Single hole mounting.


Colour: White
Type: 4PST
Action: Alternate
Switch System: 2 NO & 2 NC contact blocks
Body Material: High grade thermoplastic
Operating Travel: 3.0mm
Actuating Force: 150gm
Mech. Lifetime: 1 Million operations min
Electrical Lifetime: 100,000 operations min.
Electrical Rating: 250V AC 4A
Dielectric Strength: 1500V AC, 50Hz, 1 minute
Insulation Resistance: 1000MΩ min @ 500V DC
Panel Thickness: 8mm maximum
Mounting Hole Diameter: 16mm
