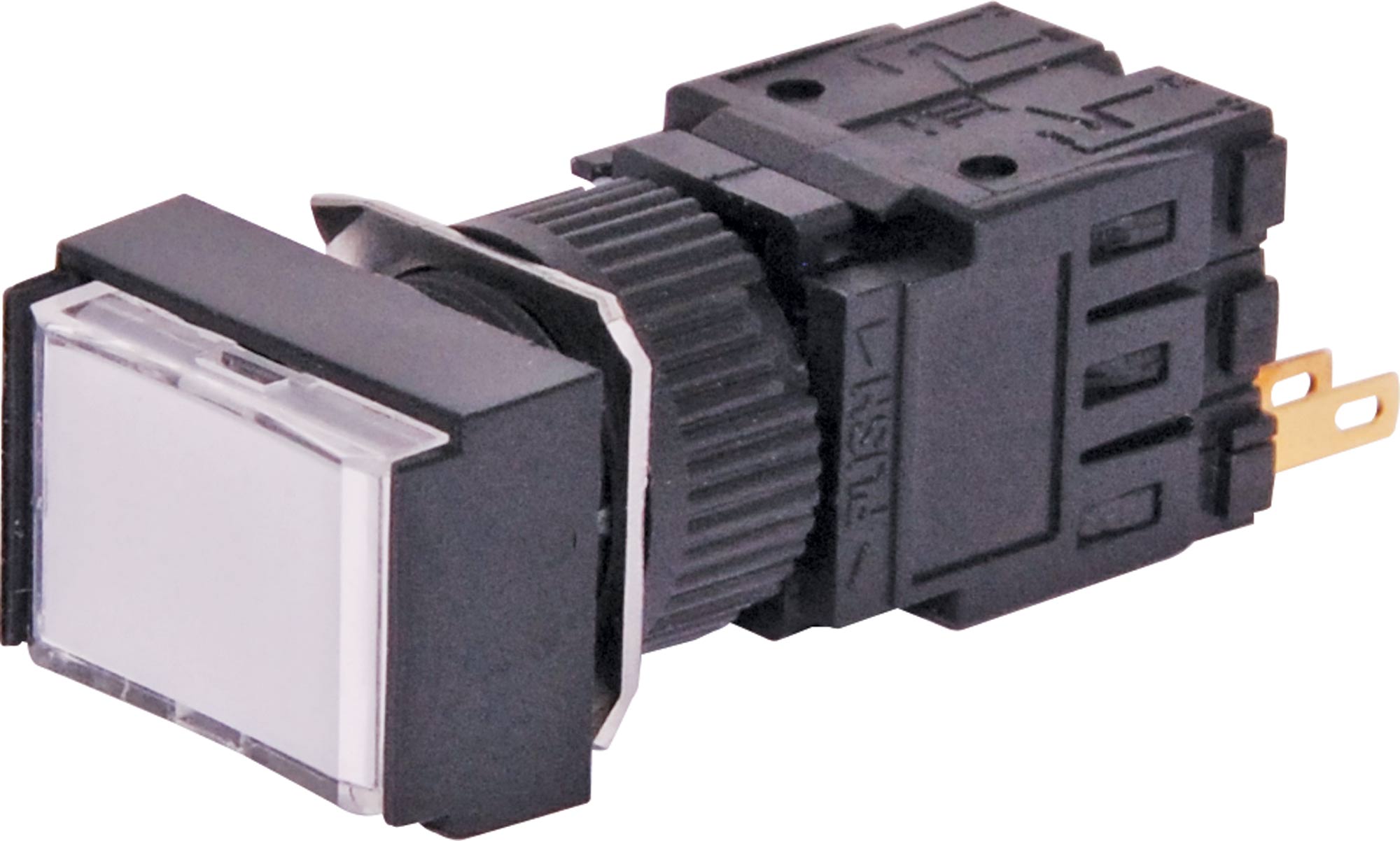

DPST Alternate White Illuminated Solder Tail Pushbutton Switch

SKU: S1726A
Alternate type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cove.
$22.68

All Prices Shown are (ex GST)
Bulk Pricing
ea $22.68
4+ $20.41
10+ $18.14
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Alternate type illuminated push-button switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Globe not included.

Terminal connections disconnect from the panel switch to allow switch to be mounted in a single 16mm round hole (15.8mm flat sides).

Accessories
S1795: Protective flip up switch cover
S1797: Globe removal & nut spanner
S1798: Slide on terminal insulation cover

Globes to Suit
S1780A: 12V Globe
S1785A: 24V Globe

Specifications

Switch Type: Alternate

  • Body Material: High grade thermoplastic
  • Operating Travel: 3.0mm
  • Actuating Force: 150gm
  • Mech. Lifetime: 1M operations min
  • Electrical life: 100,000 operations min
  • Electrical Rating: 250V AC 4A
  • Dielectric Strength: 1kV AC, 50Hz, 1 min
  • Insulation Resistance: 100MΩ min @ 500V DC
  • Panel Thickness: 7mm maximum
  • Mounting Hole Diameter: 16mmØ

Warranty & Returns

12 Months

We Offer 12 Months for this product
