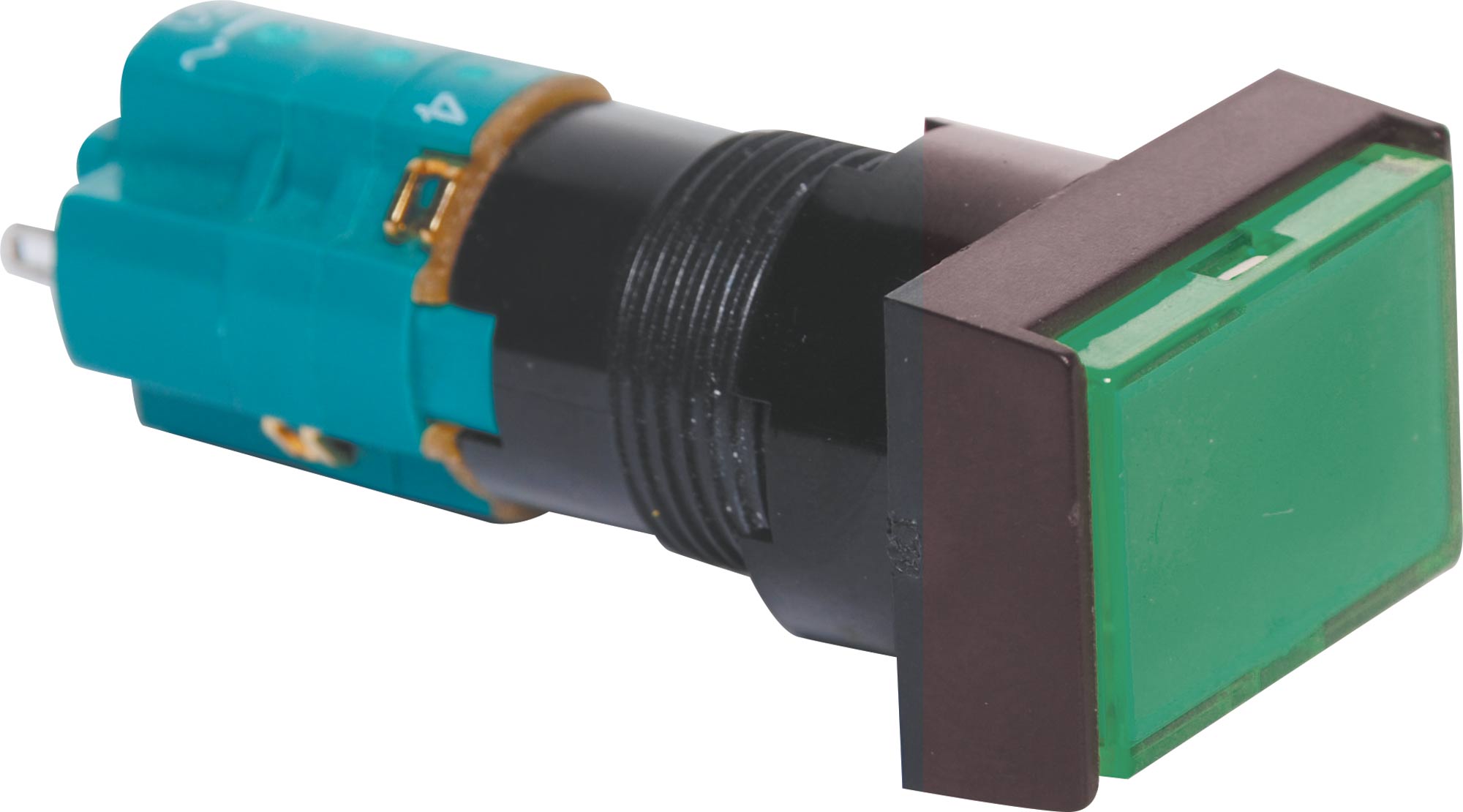

DPST Alt. Green Illuminated Solder Tail Pushbutton Switch

SKU: S1722
Alternate action type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved.
$15.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $15.00
4+ $13.64
10+ $12.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Alternate action type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Single hole mounting.


Specifications

Colour: Green

  • Type: DPST
  • Action: Alternate
  • Switch System: 1 NO & 1 NC contact blocks
  • Body Material: High grade thermoplastic
  • Operating Travel: 3.0mm
  • Actuating Force: 150gm
  • Mech. Lifetime: 1 Million operations min
  • Electrical Lifetime: 100,000 operations min.
  • Electrical Rating: 250V AC 4A
  • Dielectric Strength: 1500V AC, 50Hz, 1 minute
  • Insulation Resistance: 1000MΩ min @ 500V DC
  • Panel Thickness: 8mm maximum
  • Mounting Hole Diameter: 16mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
