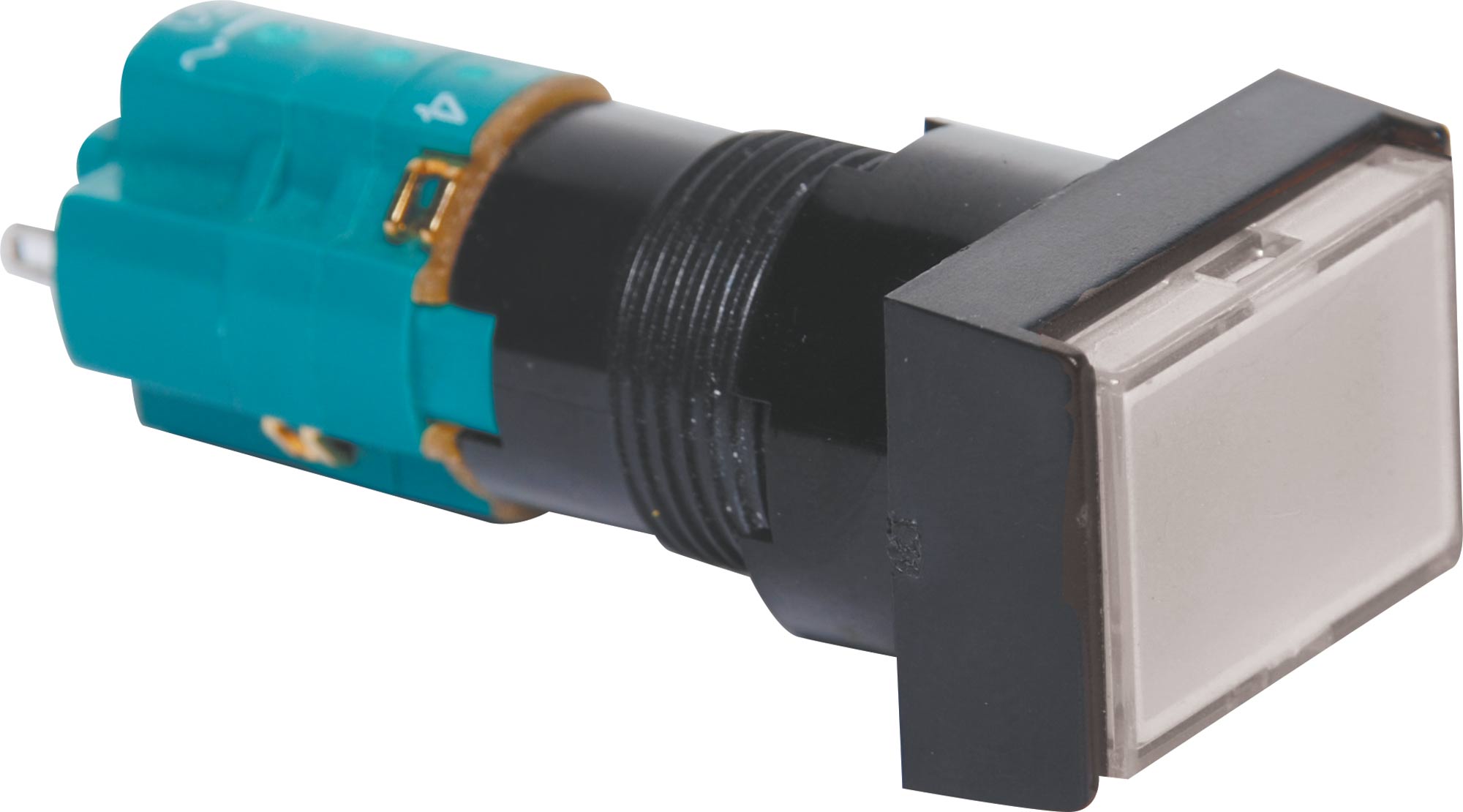

DPST Mom. White Illuminated Solder Tail Pushbutton Switch

Be the first to review this product
Momentary type illuminated switch incorporating a very positive, audible and tactile feel when operated. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Includes provision for a globe.
SKU: S1706
$15.00
Per ea
QuantityPrice
ea$15.00
4+$13.64
10+$12.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Momentary type illuminated switch incorporating a very positive, audible and tactile feel when operated. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Includes provision for a globe. Single hole mounting.


Specifications

Colour: White

  • Type: DPST
  • Action: Momentary
  • Switch System: 1 NO & 1 NC contact block
  • Body Material: High grade thermoplastic
  • Operating Travel: 3.0mm
  • Actuating Force: 150gm
  • Mech. Lifetime: 1 Million operations min
  • Electrical Lifetime: 100,000 operations min.
  • Electrical Rating: 250V AC 4A
  • Dielectric Strength: 1500V AC, 50Hz, 1 minute
  • Insulation Resistance: 1000MΩ min @ 500V DC
  • Panel Thickness: 8mm maximum
  • Mounting Hole Diameter: 16mm

12 Months

We Offer 12 Months for this product
