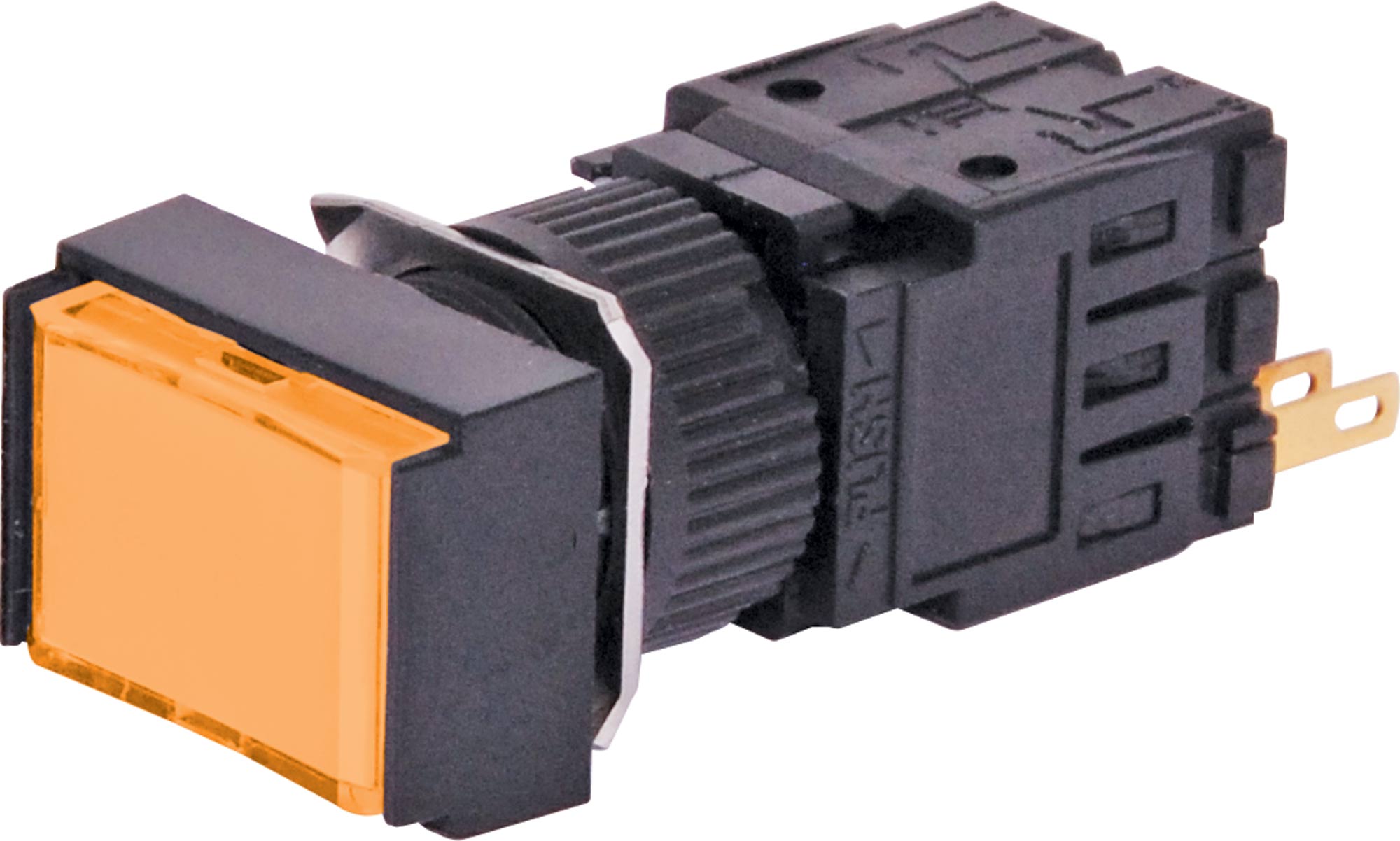

DPST Mom. Orange Illuminated Solder Tail Pushbutton Switch

Be the first to review this product
Momentary type illuminated switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cove.
SKU: S1704A
$22.68
Per ea
QuantityPrice
ea$22.68
4+$20.41
10+$18.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Momentary type illuminated push-button switch incorporating a very positive, audible and tactile feel when operated. Includes provision for a globe. In-built diffuser can be directly engraved. Alternatively a clear printed label can be placed behind the coloured cover. Globe not included.

Terminal connections disconnect from the panel switch to allow switch to be mounted in a single 16mm round hole (15.8mm flat sides).

Accessories
S 1795: Protective flip up switch cover.
S 1797: Globe removal & nut spanner
S 1798: Slide on terminal insulation cover

Globes to suit:
S 1780A: 12V Globe
S 1785A: 24V Globe

Specifications:

Switch Type: Momentary

  • Body Material: High grade thermoplastic
  • Operating Travel: 3.0mm
  • Actuating Force: 150gm
  • Mech. Lifetime: 1M operations min
  • Electrical Life: 100,000 operations min
  • Electrical Rating: 250V AC 4A
  • Dielectric Strength: 1kV AC, 50Hz, 1 min
  • Insulation Resistance: 100MΩ min @ 500V DC
  • Panel Thickness: 7mm maximum
  • Mounting Hole Diameter: 16mmØ

12 Months

We Offer 12 Months for this product
