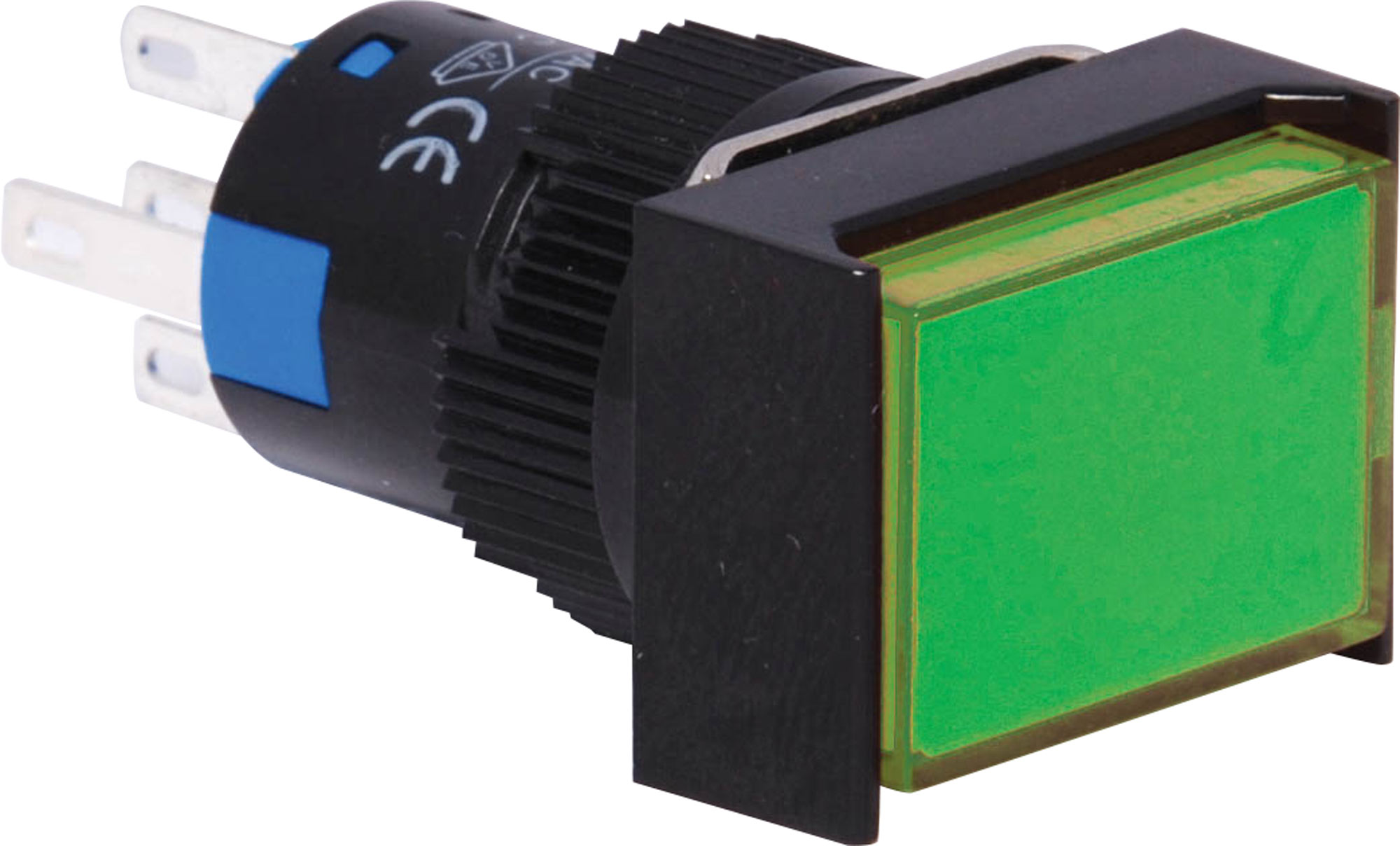

SPDT Mom. LED Green Solder Tail Pushbutton Switch

Be the first to review this product
SPDT Momentary Action - Green Switch type: Momentary Body material: High grade thermoplastic Operating travel: 3.0mm Actuating force: 200-500gm Mech. lifetime: 1M operations min Electrical life: ≥50,000 operations min. Electrical rating: 250V AC 5A LED: 24V (inbuilt resistor) Dielectric strength: 2kVAC, 50Hz, 1 min Insulation r
SKU: S1671
$16.32
Per ea
QuantityPrice
ea$16.32
4+$14.77
10+$13.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

SPDT green solder tail push button switch.

Dimensions:

Specifications:

SPDT Momentary Action - Green

  • Switch type: Momentary
  • Body material: High grade thermoplastic
  • Operating travel: 3.0mm
  • Actuating force: 200-500gm
  • Mech. lifetime: 1M operations min
  • Electrical life: =50,000 operations min.
  • Electrical rating: 250V AC 5A
  • LED: 24V (inbuilt resistor)
  • Dielectric strength: 2kVAC, 50Hz, 1 min
  • Insulation resistance: =100MΩ
  • Panel thickness: 8mm maximum
  • Mounting hole diameter: 16mm
