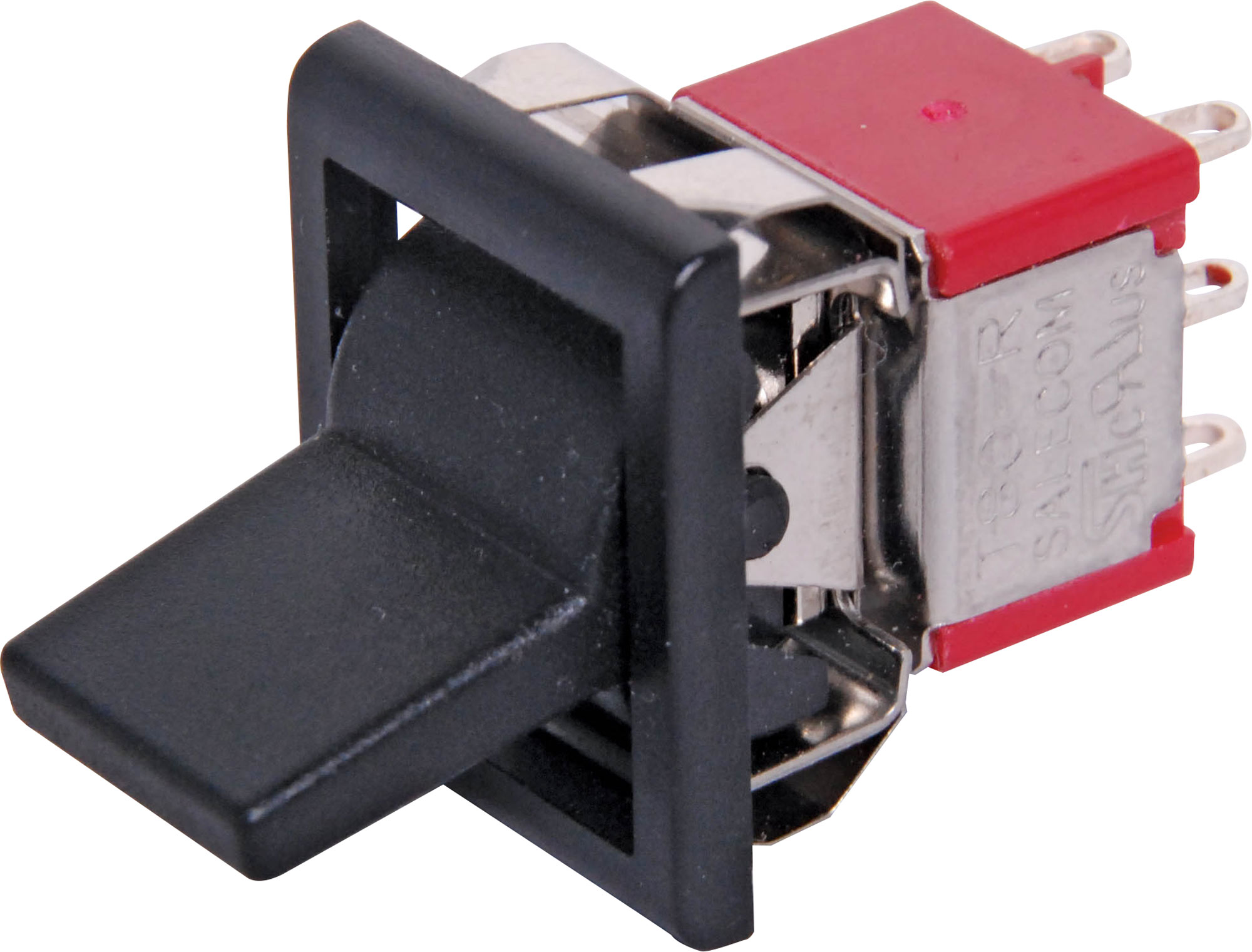

DPDT Solder Tail Mini Paddle Switch

Manufacturer: Salecom
Be the first to review this product
The Salecom range of miniature and sub-miniature switches are pin for pin compatible with several other leading brands but at a fraction of the cost. Already many major manufacturers across Australia use the Salecom brand in preference to the more expens
SKU: S1250
$4.73
Per ea
QuantityPrice
ea$4.73
10+$4.09
40+$3.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Salecom range of miniature and sub-miniature switches are pin for pin compatible with several other leading brands but at a fraction of the cost. Already many major manufacturers across Australia use the Salecom brand in preference
to the more expensive makes. Salecom offers excellent value for money. Typically Salecom switches are reliable for up to 50,000 switching operations at full ratings.

Specifications:

Contact Rating: 2A @ 250V AC or 28V DC resistive load

  • Electrical Life: 50,000 cycles at full load
  • Contact Resistance: 10m Ohm max. initial at 24V DC @ 100mA
  • Insulation Resistance: 1,000 M Ohm min.
  • Dielectric Strength: 1000V RMS at Sea Level
  • Operating Temperature: -30°C to 85°C
  • Bushing: Nickel Plated Brass
  • Case: Melamine or Diallyl Phthalate (DAP)
  • Housing: Stainless Steel
  • Contact Material: Gold Plated Brass
  • End Contact: Coin Silver, Silver Plated
  • End Terminal: Silver Plated Brass
  • Centre Contact & Terminal: Silver Plated Brass

12 Months

We Offer 12 Months for this product
