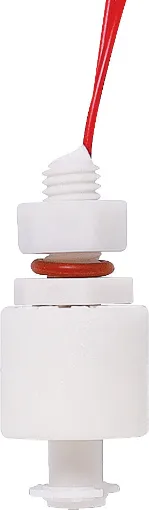

50W 1A Vertical Float Switch

Specifications

Switch Characteristics

• Contact Form: 1A
• Contact Rating (max): 50W
• Switching Voltage (max): 100V DC
• Breakdown Voltage (min): 220V DC
• Switching Current (max): 0.5A
• Current Resistance (max): 100MΩ

Operating Specifics

• Shock (max): 150g (1ms)
• Vibration (max): 20g (1-2000Hz)
• Operating Temperature: -10°C ~ +85°C
• Relative Humidity: 90%  RH (80°C)
• Anti-Water (float ball): ±3% (1000hr)
