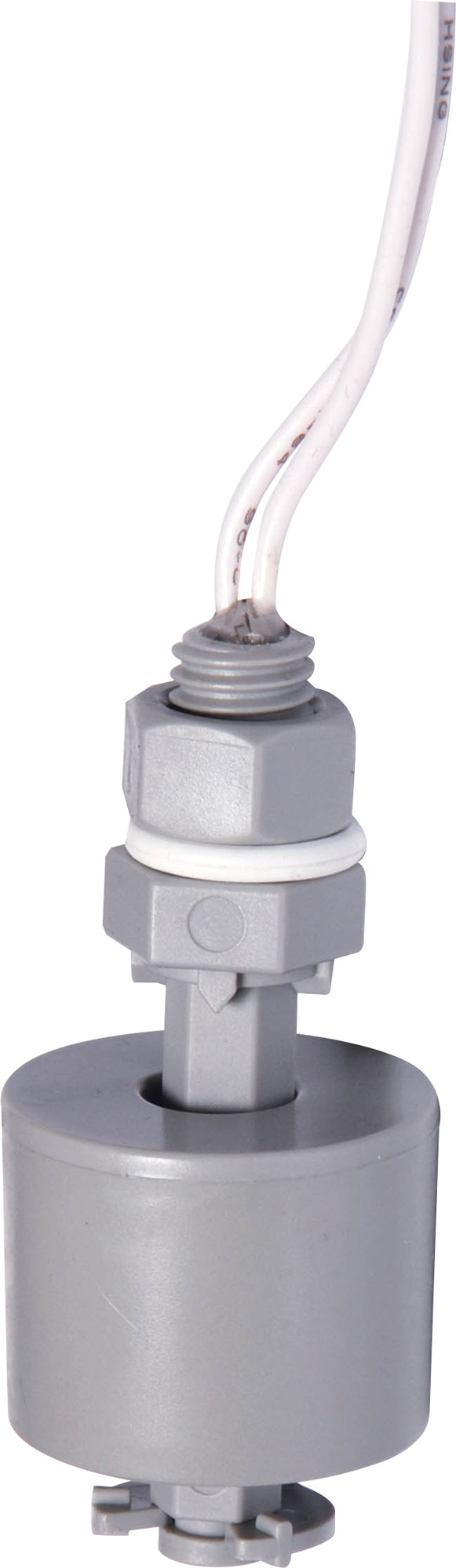

200V 1A Vertical Float Switch

Be the first to review this product
New model with increased current handling. Fully immersible. Ideal for water tank systems such as rain or waste water management, activating boat bilge pumps etc. Can be used to control pumps or electric valves when liquid levels change. Includes a waterp
SKU: S1163A
$16.32
Per ea
QuantityPrice
ea$16.32
5+$14.68
10+$13.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

New model with increased current handling. Fully immersible. Ideal for water tank systems such as rain or waste water management, activating boat bilge pumps etc. Can be used to control pumps or electric valves when liquid levels change. Includes a waterproof membrane which mounts inside tank.

Specifications:

Switching current: 1A dc

  • Contact rating: 1.75A @ 200V dc (max)
  • Contact resistance: 90mΩ
  • Insulation resistance (min): 106 MΩ
  • Magnetic sensitivity: 20 to 50 AT
  • Operate time: 0.35ms
  • Flying lead length: 300mm
  • Temperature rating: -55° to 70°C

12 Months

We Offer 12 Months for this product
