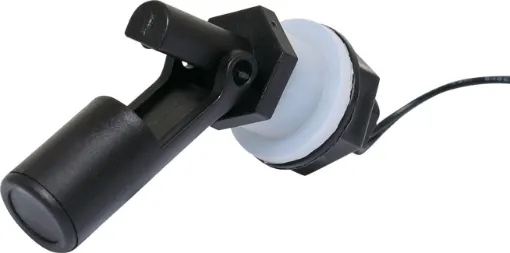

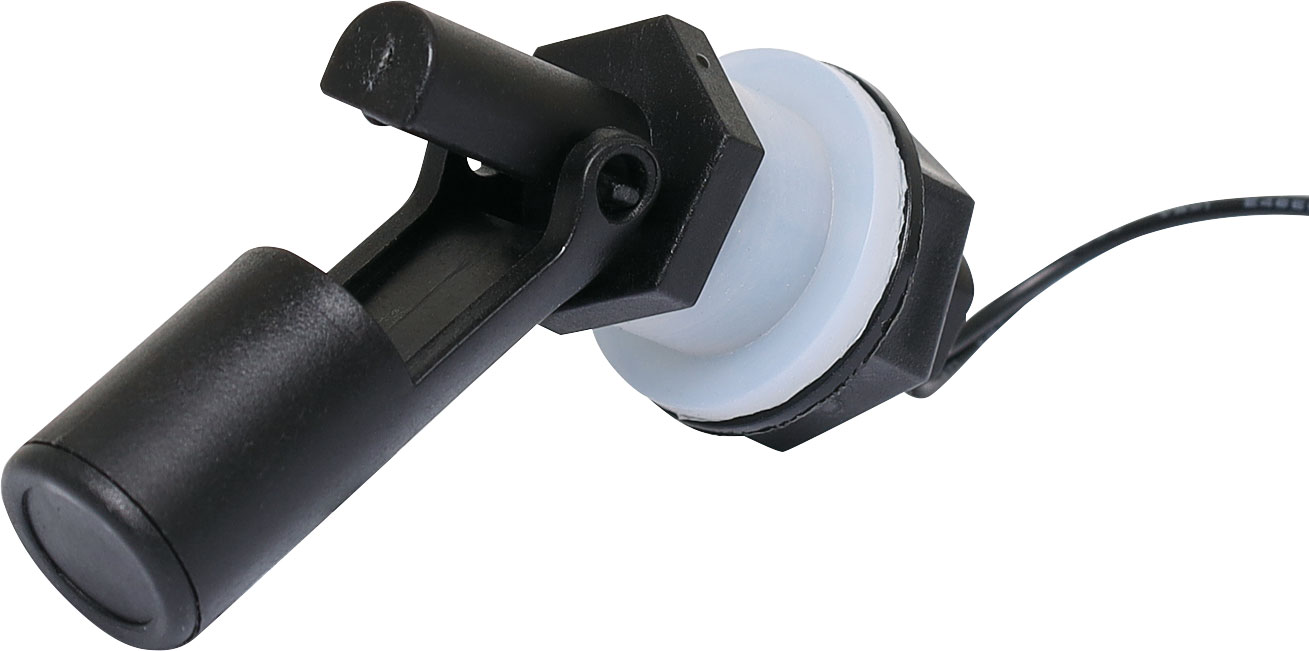

100V 1.0A Horizontal Float Switch

SKU: S1160C
Fully immersible. Ideal for water tank systems such as rain or waste water management, activating boat bilge pumps etc. Can be used to control pumps or electric valves when liquid levels change.
$18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.14
5+ $16.32
10+ $14.50
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Fully immersible. Ideal for water tank systems such as rain or waste water management, activating boat bilge pumps etc. Can be used to control pumps or electric valves when liquid levels change. Includes a waterproof membrane which mounts inside tank.

Specifications

Diameter of thread: ~15.5mm

  • Switch type: SPST
  • Switching current: 1.0A DC
  • Contact rating: 1.0A @ 100VDC (Max)
  • Contact resistance: 100mΩ
  • Insulation resistance: >10^10 Ω
  • Magnetic sensitivity: 20 - 50 AT
  • Operate time: 0.35ms
  • Flying lead length: 300mm
  • Temperature Rating: -10 to 85°C

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
