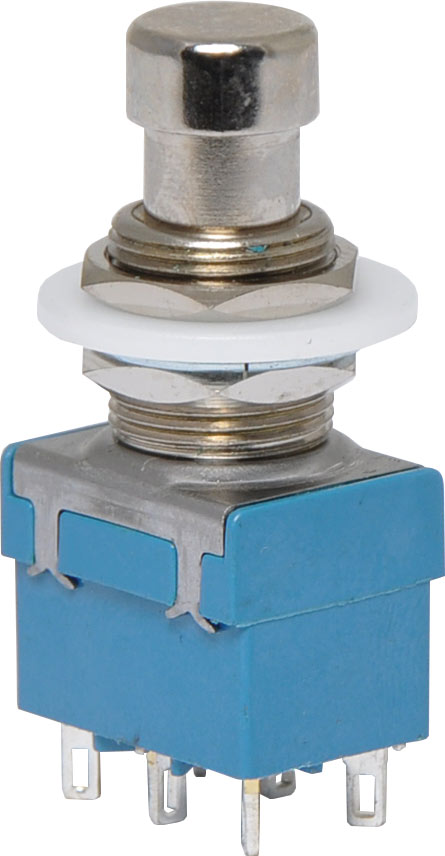

DPDT Momentary Footpad Switch

Be the first to review this product
The sturdy little stomp switches that you find on guitar effects pedals. Switch Type: DPDT momentary Contact rating: 4A @ 250V AC Contact resistance: <80m&Omega Mounting hole diam.: 12mm
SKU: S1152A
$8.32
Per ea
Quantity Price
ea $8.32
10+ $7.59
40+ $7.00

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features:
Contact Form: DPDT
Double Pole Double Throw
Switch Function: ON-ON
Ratings: 4A @ 125VAC, 2A @ 250VAC
6-pin solder lug
Metal pushbutton switch (0.40"/10mm diameter)
Electrical life: 20,000 make and break cycles
Body color: Black
Stomp switch, foot switch

Applications:
Gaming: flight simulation
Home appliances
Floor care appliances
Industrial controls
Medical and dental
Foot switch for guitar and audio equipment

Specifications

Contact Form: DPDT

  • Switch Function: ON-ON
  • Maximum Current Rating (A): 4
  • Type: Push Button
  • Voltage Rating (AC): 250
  • Actuator Type: Round Button
  • Color: Black
  • Color - Actuator/Cap: Chrome
  • Number of Positions: 2
  • Mounting Style: Panel
  • Termination Style: Solderable Lug
  • Number of Pins: 6
  • Length (inch): 0.89
  • Width (inch): 0.71
  • Depth (inch): 0.75
  • Height (inch): 0.46
  • Actuator Length (inch): 0.4
  • Lead Spacing A (inch): 0.35
  • Lead Spacing B (inch): 0.35
  • Features: Stomp Switch
  • Maximum Contact Resistance: 50 mΩ
  • Minimum Insulation Resistance: 100 MΩ
  • Dielectric Strength: 1000 VAC
  • Electrical Life: 20,000 operations
  • Maximum Current Rating: 4
