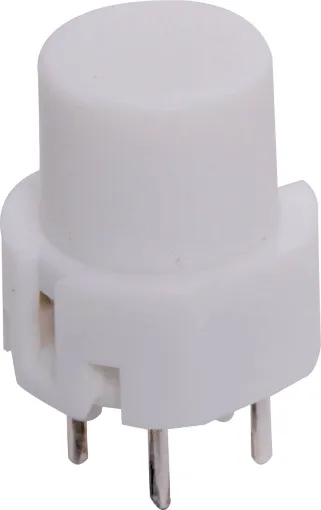

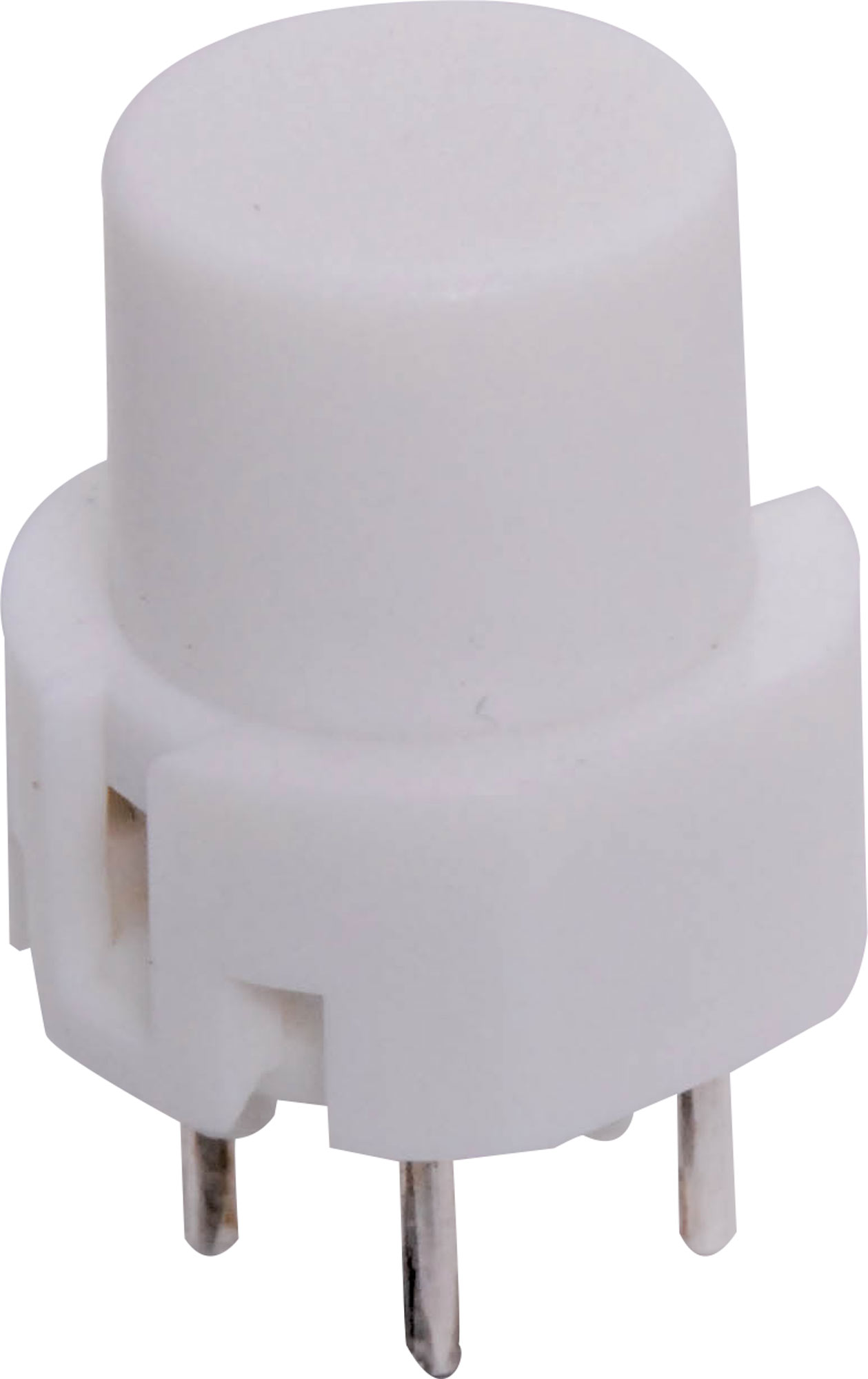

SPST Momentary White PCB Mount Tactile Switch

SKU: S1099
Switch type: SPST momentary Contact resistance: 󖼤MΩ Contact breaking capacity: 10mA/35VDC Actator diameter: 9mm Insulation resistance: 100000MΩ Dielectric strength: 500V Inter-terminal capacity: 1pF Life (nominal current & voltage): 500000 cycle Temperature range: -20
$1.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.45
10+ $1.32
25+ $1.14
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Colour: White
Type: SPST
Action: Momentary
Contact Resistance: 50mΩ Max
Operating Force: 130±50gf
Actuator Diameter: 9mm
Insulation Resistance: 100MΩ Min
Dielectric Strength: 500V AC (50~60Hz) for 1 minute
Life (nominal current & voltage): 100000 cycle
Temperature Range: -10ºC to +65ºC
Solderability: 235ºC for 5 seconds
Travel: 0.80mm Max

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
