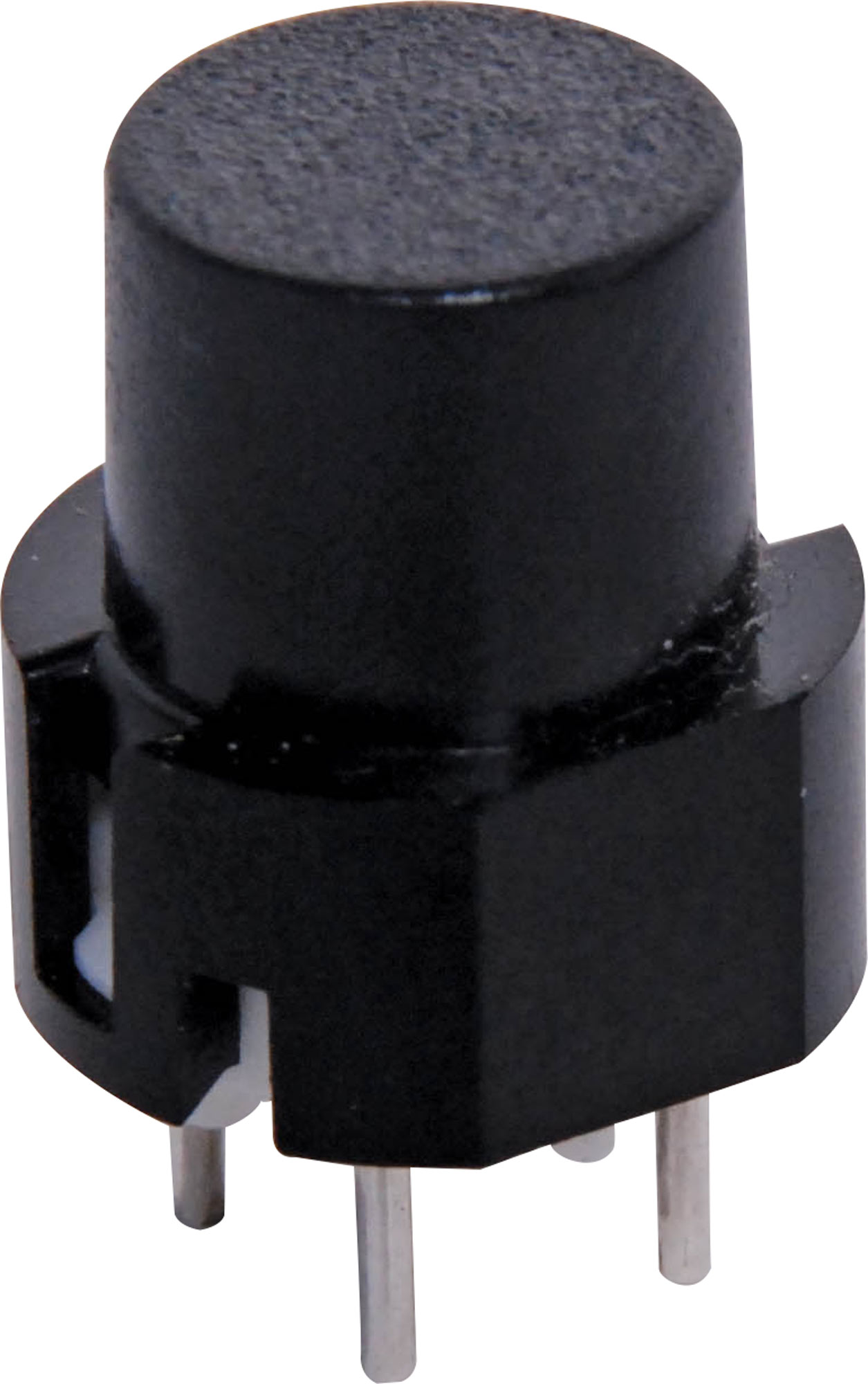

SPST Momentary Black PCB Mount Tactile Switch

Be the first to review this product
Switch type: SPST momentary Contact resistance: &#880420M&#937 Contact breaking capacity: 10mA/35VDC Actator diameter: 9mm Insulation resistance: 100000M&#937 Dielectric strength: 500V Inter-terminal capacity: 1pF Life (nominal current & voltage): 500000 cycle Temperature range: -20ºC to +65ºC Solderability: 235
SKU: S1096
$1.45
Per ea
QuantityPrice
ea$1.45
10+$1.32
25+$1.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Colour: Black
Type: SPST
Action: Momentary
Contact Resistance: 50mΩ Max
Operating Force: 130±50gf
Actuator Diameter: 9mm
Insulation Resistance: 100MΩ Min
Dielectric Strength: 500V AC (50~60Hz) for 1 minute
Life (nominal current & voltage): 100000 cycle
Temperature Range: -10ºC to +65ºC
Solderability: 235ºC for 5 seconds
Travel: 0.80mm Max
