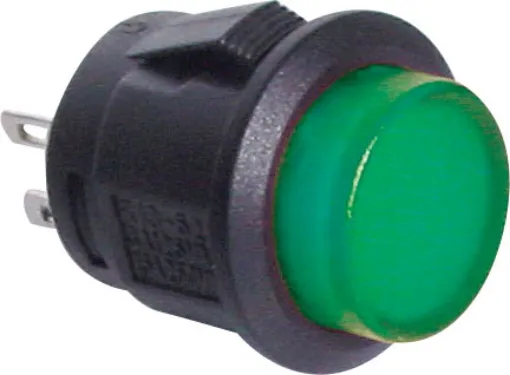

SPST Momentary LED Green Solder Tail Pushbutton Switch

Be the first to review this product
Switch type:Solder Tail SPDT Contact rating:1.5A @ 250V AC Contact resistance:< 50m Ohm
SKU: S1085
$4.45
Per ea
Quantity Price
ea $4.45
10+ $4.14
40+ $3.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

SPST momentary LED green solder tail pushbutton switch.

Dimensions:

Specifications

Colour: Green

  • Type: SPST
  • Action: Momentary
  • Contact Rating: 1.5A @ 250V AC
  • LED (typical voltage): 2V DC, 20mA
  • Contact Resistance: < 50mΩ
  • Insulation Resistance: >100MΩ
  • Panel Thickness: 0.75 - 3mm
  • Dielectric Strength: >1500V AC, 1 minute
