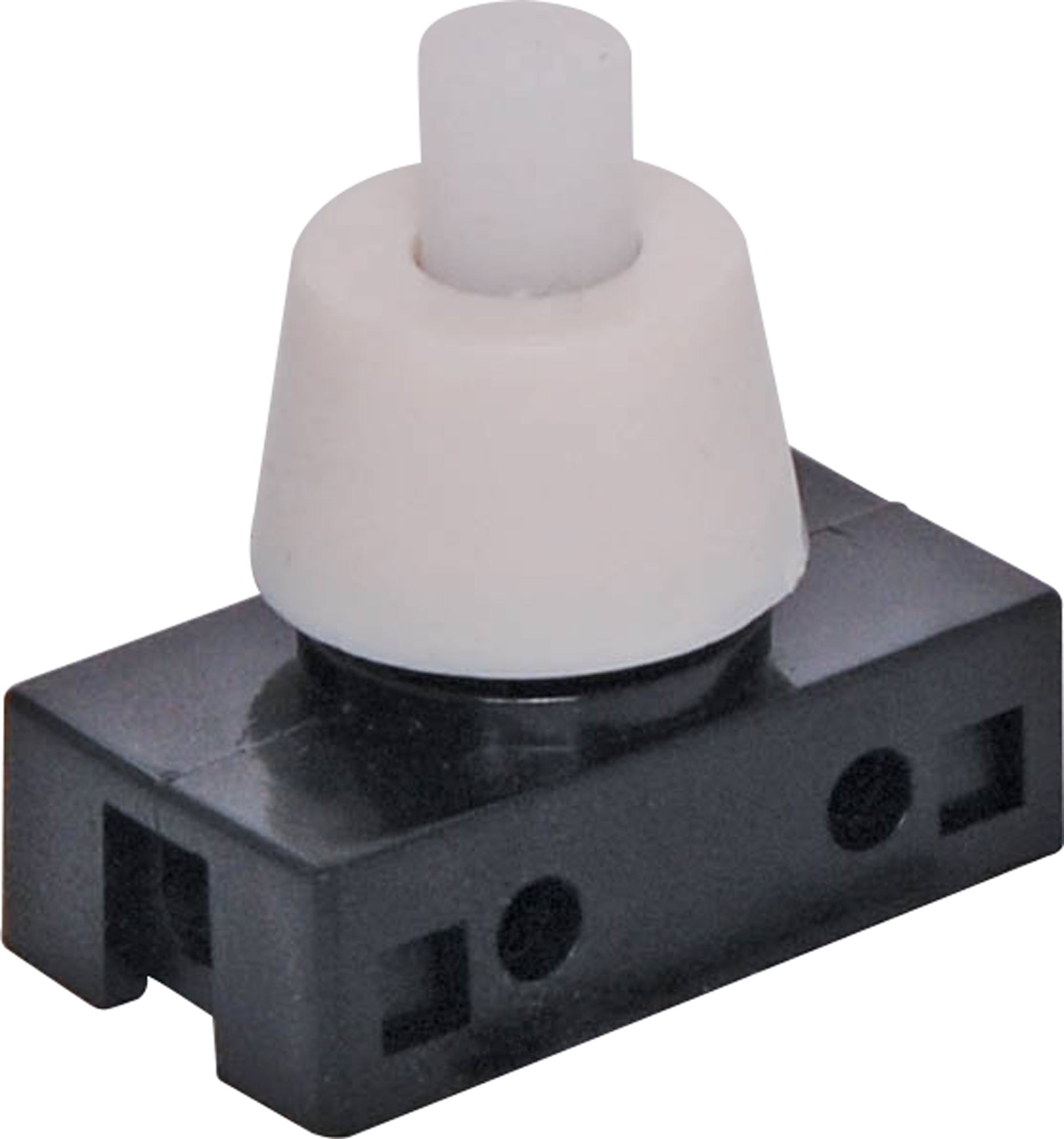

SPST 250V 2A Bed Lamp Switch

Be the first to review this product
Switch Type: Alternate Contact Rating: 2.0A @ 250V AC Contact Resistance: <100m Ohm Mounting Hole Diameter: 10mm
SKU: S1075A
$2.50
Per ea
Quantity Price
ea $2.50
10+ $2.09
40+ $2.05

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Switch Type: Alternate
Contact Rating: 2.0A @ 250V AC
Contact Resistance: <50m Ohm
Mounting Hole Diameter: 10mm
Electrical life: >10000 cycles
Single pole, latch on, latch off
Screw terminals
Conductors min./max. diameter:
- flexible* 1.1-1.5mm (7mm strip)
- rigid 0.9-1.2mm (7mm strip)
(ferrule end or solder tip flexible conductors are recommended)

Features

  • For a.c. appliances
  • Puson, push off
  • Rated voltage: 250V
  • 2.0A current rating
  • IP40 Rated mechanism
  • Black case, white push button, white threaded cap

12 Months

We Offer 12 Months for this product
