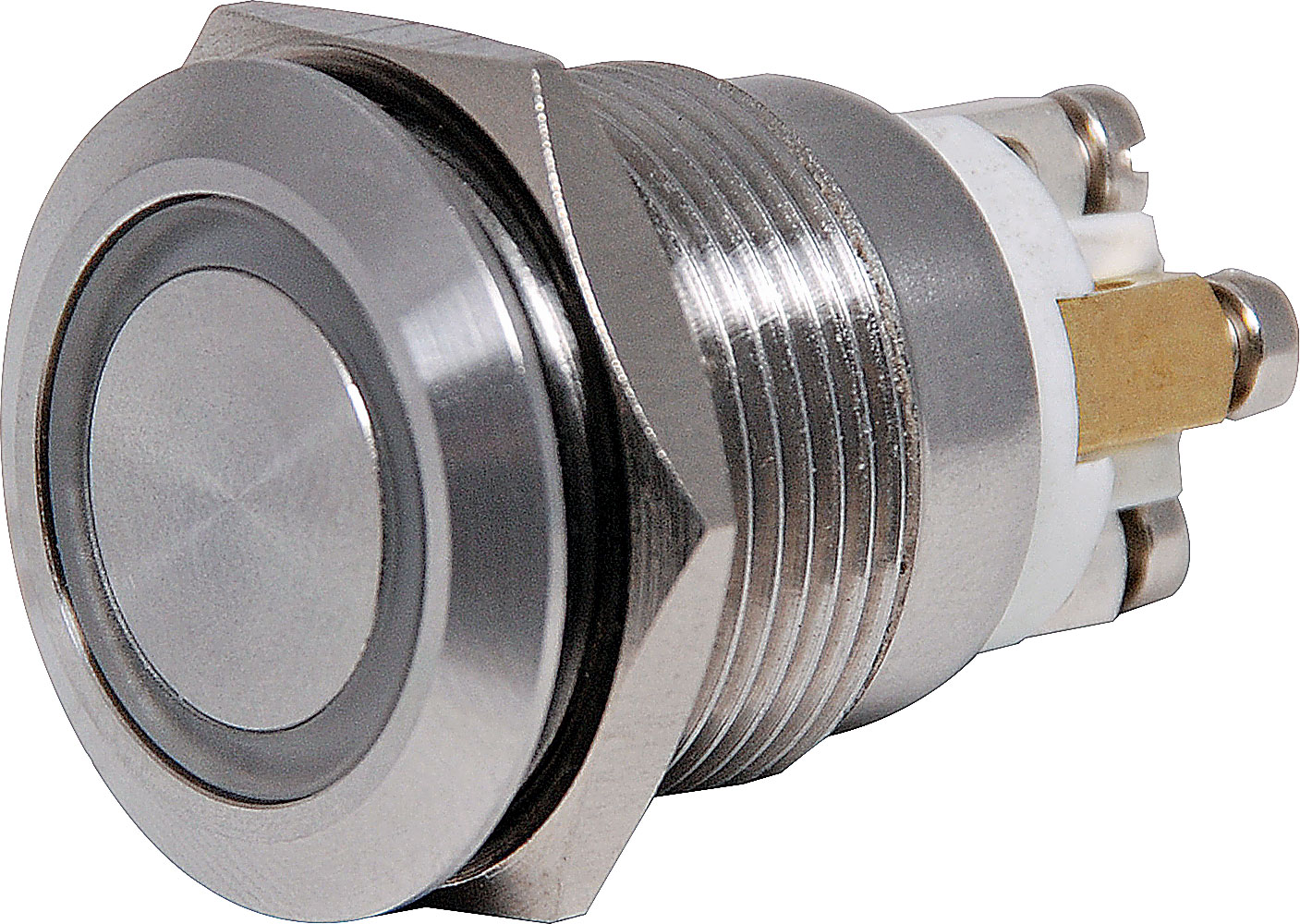

SPST IP65 Vandal Resistant Illum. Red Blue LED Pushbutton Switch

Be the first to review this product
Heavy duty vandal resistant switch for indoor/ sheltered outdoor use eg carparks, building entrances. Momentary action. Red/Blue LED ring.
SKU: S0958
$31.77
Per ea
Quantity Price
ea $31.77
5+ $28.59
10+ $25.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Heavy duty vandal resistant switch for indoor/ sheltered outdoor use eg carparks, building entrances. Momentary action. Red/Blue LED ring.

Specifications

Switch type: Screw terminal SPST

  • Contact rating: 2A @ 36V DC
  • Operation type: Momentary
  • Contact resistance: <50mΩ
  • Insulation resistance: >1000MΩ
  • Dielectric strength: 1500V, RMS 50Hz, 1 min
  • Operating temperature: -25°C to 55°C
  • Operating force: About 3N.
  • Operating travel: About 2.5mm.
  • Outer construction: Stainless steel
  • LED: 12V dc
  • Rating: IP65
  • Panel Thickness: 1-8mm
  • Cutout diameter: 19mm

12 Months

We Offer 12 Months for this product
