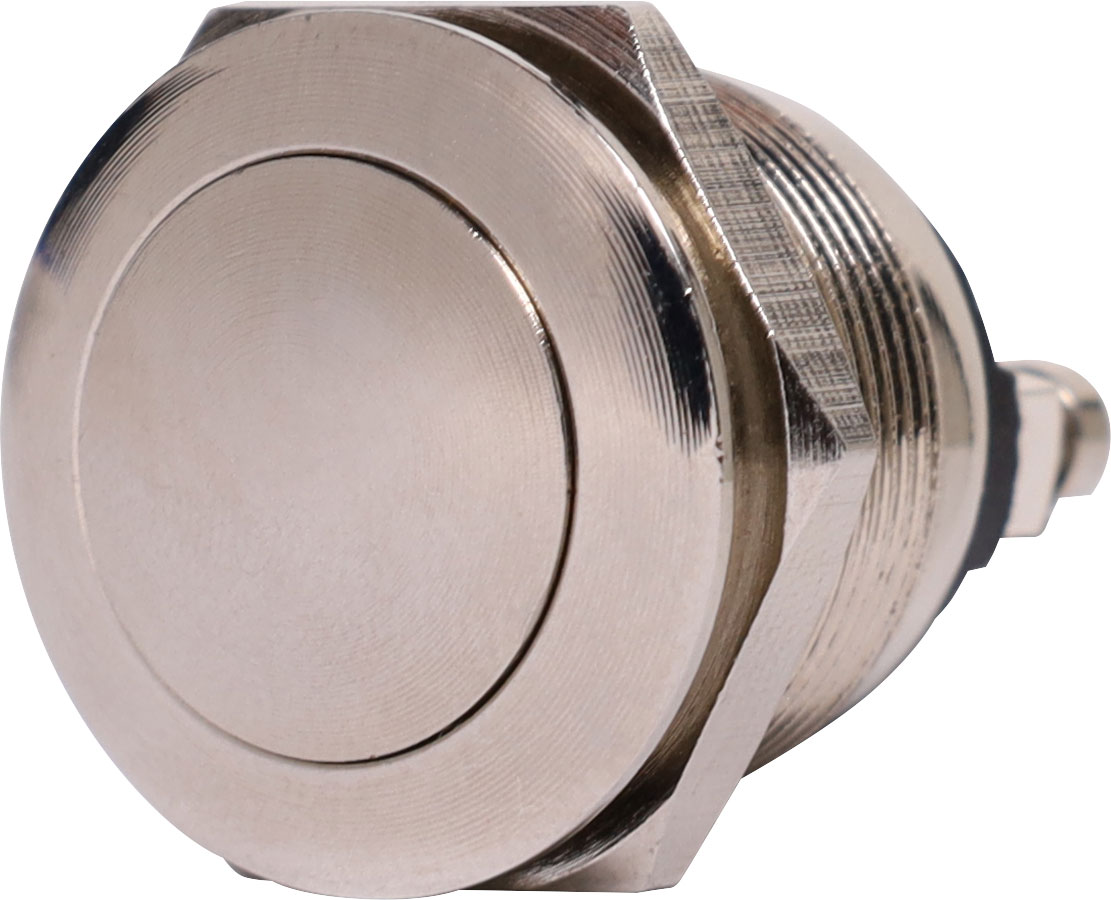

SPST Vandal Resistant Momentary Pushbutton Switch

SKU: S0950A
Heavy duty vandal resistant switch for indoor/ sheltered outdoor use eg carparks, building entrances. Momentary. Switch type: Screw terminal SPST Contact rating: 5A @ 250V AC Panel Thickness: 1-10mm
$6.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $6.23
10+ $5.50
25+ $4.95
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Heavy duty vandal resistant switch for indoor/ sheltered outdoor use eg carparks, building entrances. Momentary.

Specifications

Rating: 4A 125V AC, 2A 250V AC

  • Contact: 20Ωm max
  • Insulation: 500V DC 100Ωm min
  • Dielectric Strength: 1min 1000V AC
  • Operating Temperature: -25°C ~ +85°C
  • Electrical Life: 50,000 cycles
  • Rating: 4A 125V AC, 2A 250V AC
  • Contact: 20M Ohm max
  • Insulation: 500V DC 100M Ohm min
  • Dielectric Strength: 1min 1000V AC
  • Operating Temperature: -25°C ~ +85°C
  • Electrical Life: 50,000 cycles
  • Switch Type: NO contacts, Screw terminal SPST
  • Contact Rating: 2A @ 250V AC, 4A 12V DC
  • Panel Thickness: 1-10mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
