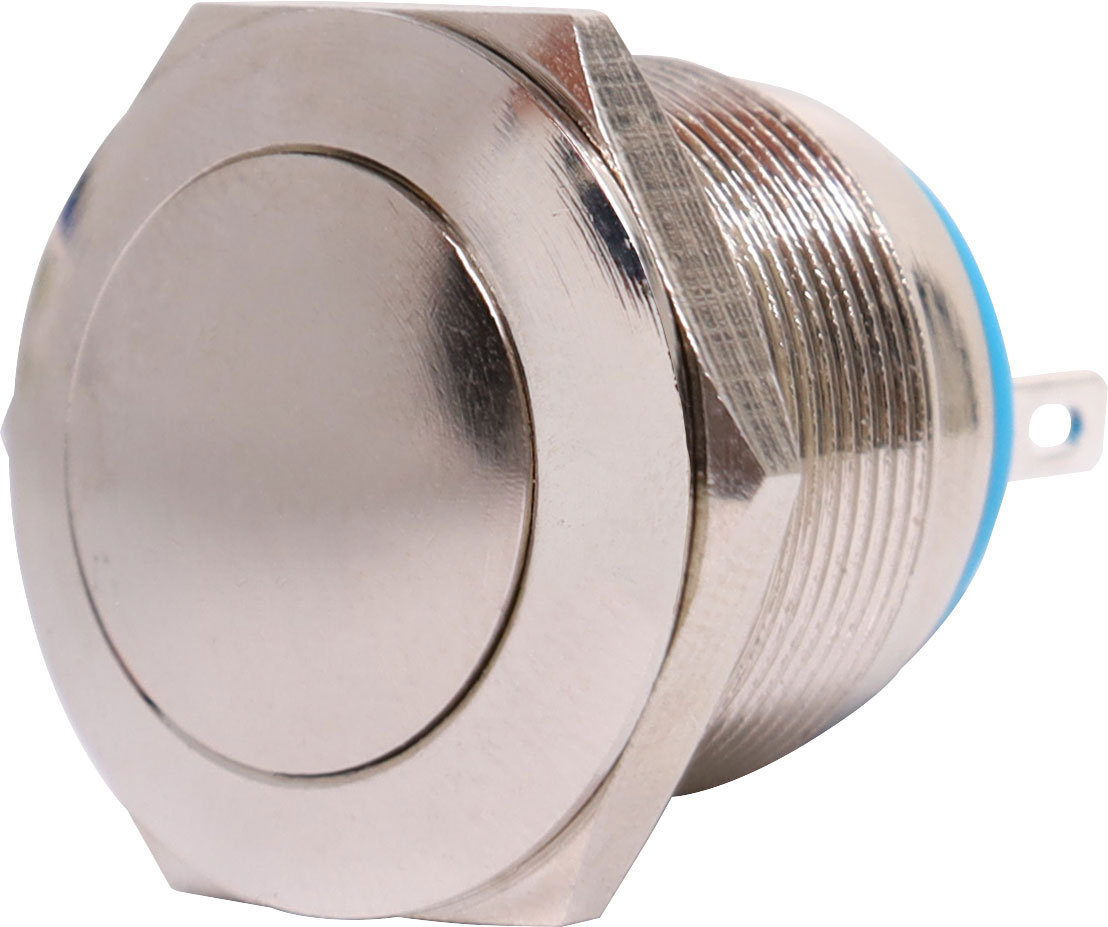

SPST Vandal Resistant Momentary Pushbutton Switch

Be the first to review this product
Heavy duty vandal resistant switch for indoor/ sheltered outdoor use eg carparks, building entrances. Momentary. Switch type: Screw terminal SPST Contact rating: 5A @ 250V AC Panel Thickness: 1-10mm
SKU: S0949A
$6.23
Per ea
QuantityPrice
ea$6.23
10+$5.50
25+$4.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Heavy duty vandal resistant switch with solder terminal tags on rear for indoor/ sheltered outdoor use eg carparks, building entrances. Momentary.

Specifications

Rating: 4A 125V AC, 2A 250V AC

  • Contact: 20Ωm max
  • Insulation: 500V DC 100Ωm min
  • Dielectric Strength: 1min 1000V AC
  • Operating Temperature: -25°C ~ +85°C
  • Electrical Life: 50,000 cycles
  • Rating: 4A 125V AC, 2A 250V AC
  • Contact: 20M Ohm max
  • Insulation: 500V DC 100M Ohm min
  • Dielectric Strength: 1min 1000V AC
  • Operating Temperature: -25°C ~ +85°C
  • Electrical Life: 50,000 cycles
  • Switch Type: NO contacts, Screw terminal SPST
  • Contact Rating: 2A @ 250V AC, 4A 12V DC
  • Panel Thickness: 1-10mm

12 Months

We Offer 12 Months for this product
