SPST LED Vandal Resistant IP67 Alternate Touch Switch

Be the first to review this product

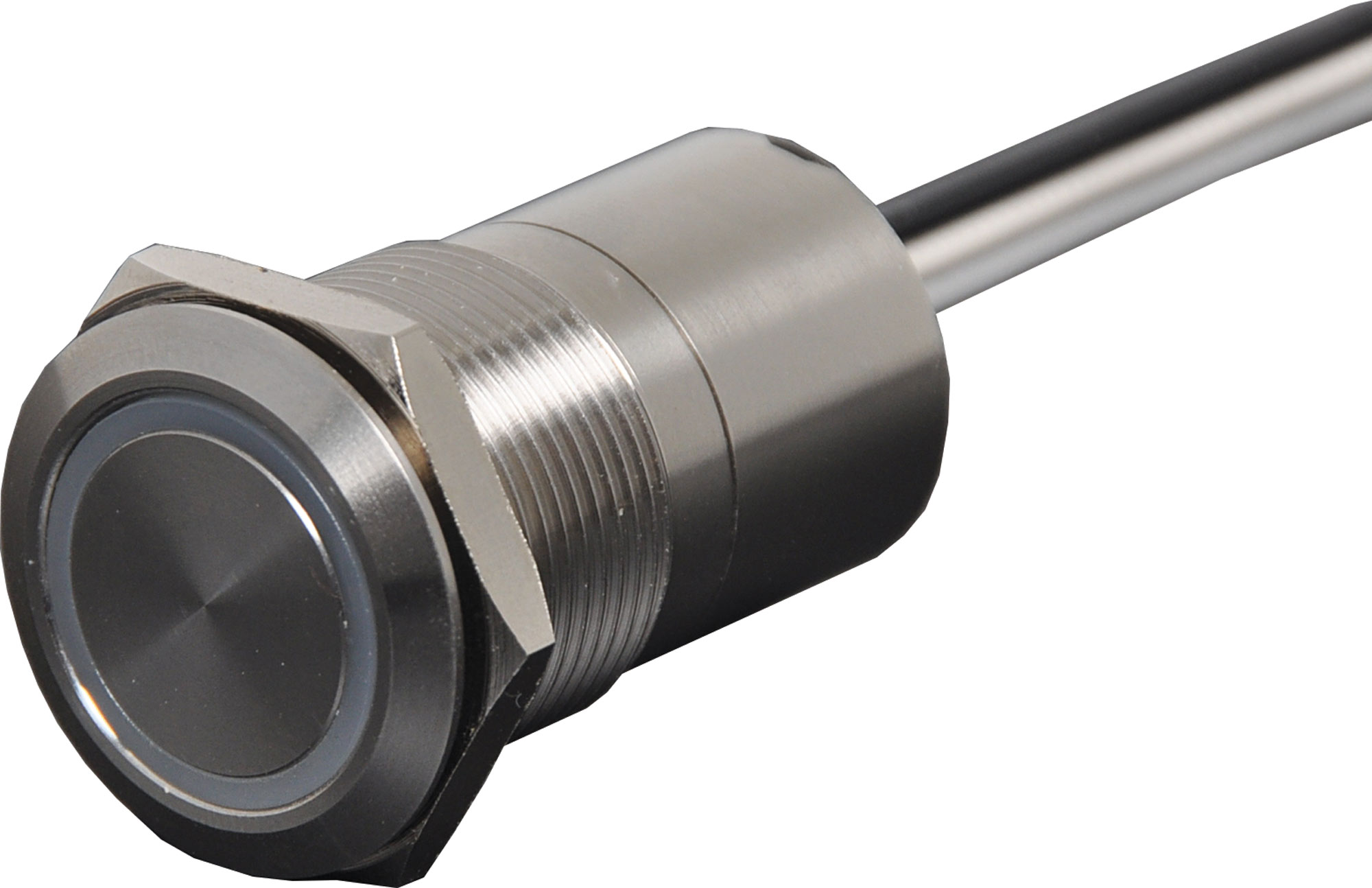

Touch activated dual colour (red, green) LED switch for ticket machines, kiosks, access control etc. IP67 rated. 30cm fly lead connection. A touch action.
SKU: S0941
$62.27
Per ea
QuantityPrice
ea$62.27
4+$56.32
8+$49.95

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Touch activated dual colour (red, green) LED switch for ticket machines, kiosks, access control etc. IP67 rated. 30cm fly lead connection. A touch action.

Please Note: This product needs 12V DC to work and if touched, LED lights change and it puts out 12V DC on the third wire which is the switching action.

Specifications

Panel Thickness: 10mm

  • LED Colours: Red/Green
  • LED Operating Voltage: 12VDC
  • Max Switch Rating: 500mA/24VDC
  • Electrical Life: 50 million cycles at full load
  • Contact Resistance: =20MΩ
  • Insulation Resistance: =10MΩ 600VDC
  • Operating Temperature: -25°C to +55°C
  • IK Class: IK10
  • IP Class: IP67
  • Body Material: Stainless steel
  • Cable Materials: UL1430 22AWG

12 Months

We Offer 12 Months for this product
